LQMU110708PXER-MJ AH3135
Milling Insert; LQMU110708PXER-MJ AH3135 AH3135 × 0.354″ Width × 0.327″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH3135 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.2 mm/tooth |

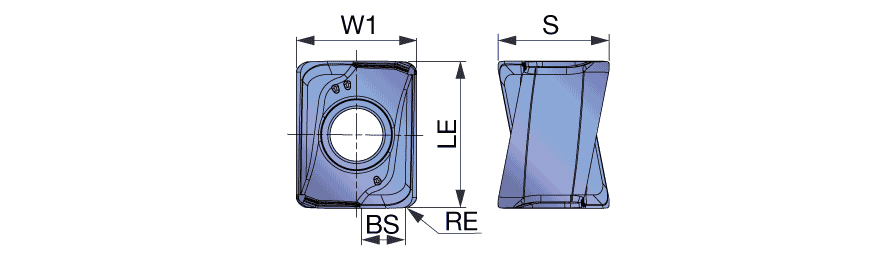

| Corner Radius (RE) | 0.8 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 9 mm | Tool Type | Double sided Inserts |
| Insert Width (W1) | 9 mm | Minimum Feed per Tooth (fz(min)) | 0.1 mm/tooth |
| Inscribed Circle Diameter (IC) | 9 mm | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 8.3 mm | Cutting Edge Effective Length (LE) | 11 mm |
| Wiper Edge Length (BS) | 1.1 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Double-sided insert with 4 cutting edges, for general purpose. Innovative multi-functional geometry enables 3D milling applications. | Country of Origin | Japan |
Shipping Info
Package Weight
0.35
