2QP-SECW12X412ZETR BX480

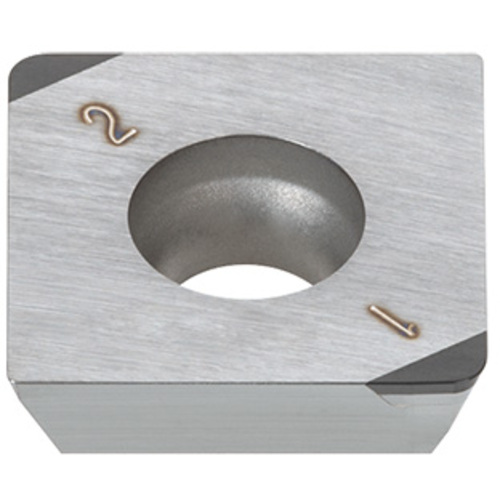

Milling Insert; 2QP-SECW12X412ZETR BX480 BX480 × 0.157″ Thickness ; PCBN

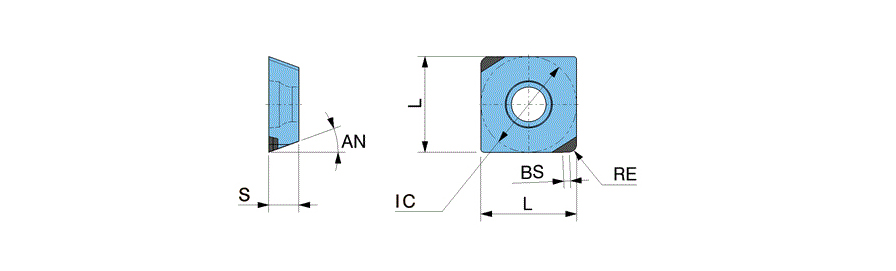

| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | PCBN |
| Corner Radius (RE) | 0.0394″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 1/2″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.157″ | Cutting Edge Effective Length (LE) | 1/2″ |
| Wiper Edge Length (BS) | 0.035″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | BX480 |
Product Features
| Family Description | cBN insert for high speed cast iron face milling. Regular insert. | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
