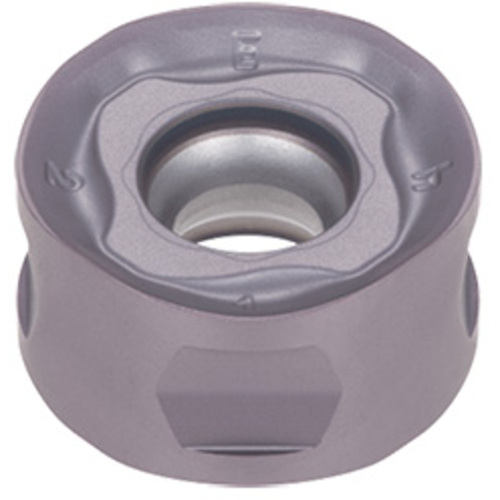

RNMU1307ZNER-MJ AH3135
Milling Insert; RNMU1307ZNER MJ AH3135 AH3135 × 0.286″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Face Milling | | Grade | AH3135 |

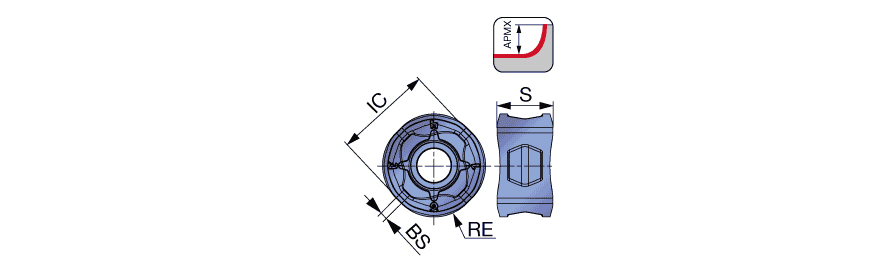

| Corner Radius (RE) | 0.2362″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.236″ | Number of Cutting Edges | 8 |
| Inscribed Circle Diameter (IC) | 0.512″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.286″ | Body Material | Carbide |
| Wiper Edge Length (BS) | 0.039″ |
Product Features
| Family Description | Double-sided round inserts, M class, with MJ chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.02
