LMMU110716PNER-MJ T1215
Milling Insert; LMMU110716PNER-MJ T12125 T1215 × 0.28″ Width × 0.453″ Thickness ; Carbide ; TiCN+Al2O3

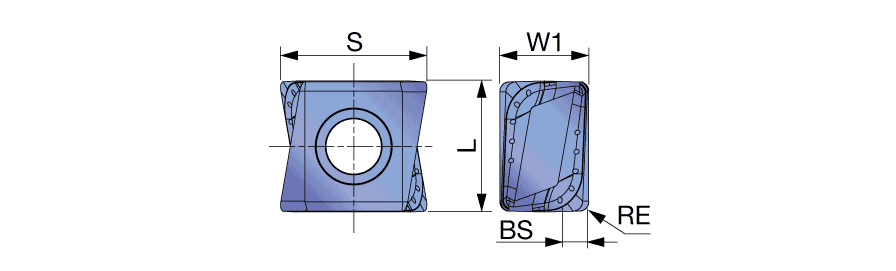

| Applicable Material | | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | T1215 |
| Application | | Face Milling | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0118 in/tooth |
| Corner Radius (RE) | 0.0629″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.382″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.28″ | Minimum Feed per Tooth (fz(min)) | 0.005 in/tooth |
| Insert Thickness (S) | 0.453″ | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 0.047″ | Measurement Type | Inch |
| Coating | TiCN+Al2O3+TiN | Body Material | Carbide |
Product Features
| Family Description | Double sided tangential insert with chipbreaker and highly toughness cutting edges | Country of Origin | Japan |
Shipping Info
Package Weight
0.019
