LNGU06X5ZER-MH AH8015

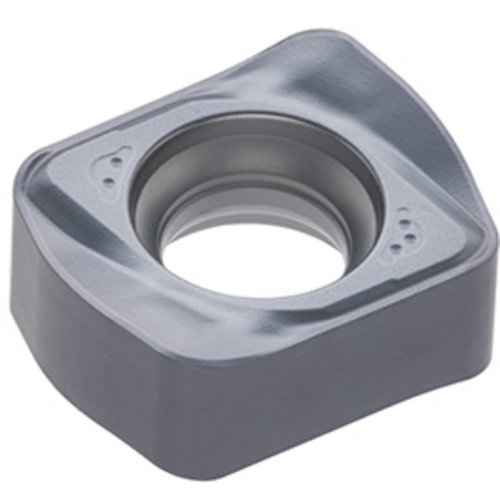

Milling Insert; LNGU06X5ZER-MH AH8015 INS AH8015 × 0.472″ Width × 0.276″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH8015 |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

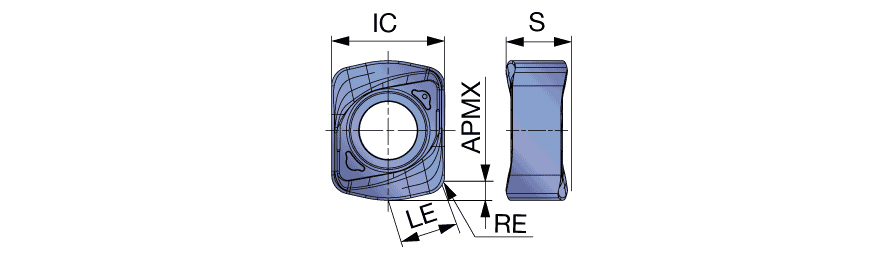

| Corner Radius (RE) | 0.0787″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ | Number of Cutting Edges | 4 |
| Insert Width (W1) | 0.472″ | Cutting Edge Effective Length (LE) | 0.236″ |
| Inscribed Circle Diameter (IC) | 0.472″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.276″ | Body Material | Carbide |
| Coating | AlTiN |
Product Features
| Family Description | Double sided insert with 4 edges and MH chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.019
