LMMU110708PNER-MJ AH3135
Milling Insert; LMMU110708PNER-MJ AH3135 AH3135 × 0.28″ Width × 0.461″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH3135 |
| Application | | Face Milling | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.3 mm/tooth |

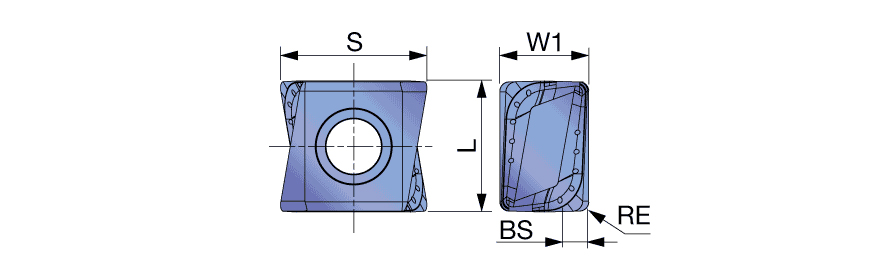

| Corner Radius (RE) | 0.8 mm | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 9.7 mm | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 7.1 mm | Minimum Feed per Tooth (fz(min)) | 0.12 mm/tooth |
| Insert Thickness (S) | 11.7 mm | Number of Cutting Edges | 4 |
| Wiper Edge Length (BS) | 2 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Double sided tangential insert with chipbreaker and highly toughness cutting edges | Country of Origin | Japan |
Shipping Info
Package Weight
0.019
