| Applicable Material | | Cast Iron | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0087 in/tooth |
| Application | | Shoulder Milling | | Cutting Edge Material | Carbide |

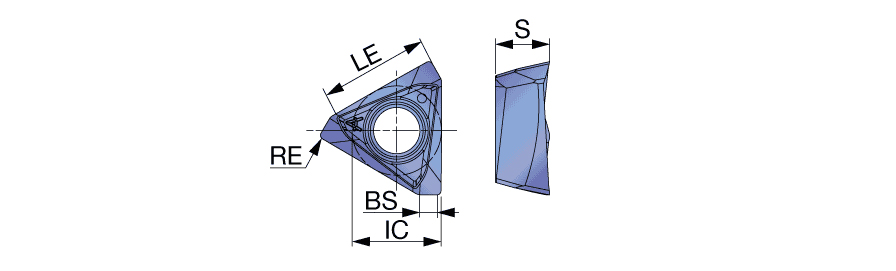

| Corner Radius (RE) | 0.0157″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.394″ | Minimum Feed per Tooth (fz(min)) | 0.0031 in/tooth |
| Inscribed Circle Diameter (IC) | 0.339″ | Number of Cutting Edges | 3 |
| Insert Thickness (S) | 0.205″ | Cutting Edge Effective Length (LE) | 0.413″ |
| Wiper Edge Length (BS) | 0.059″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | KS05F |
Product Features
| Family Description | High performance inserts with AJ chipbreaker for non-ferrous metal | Country of Origin | Japan |
Shipping Info
Package Weight
0.027
