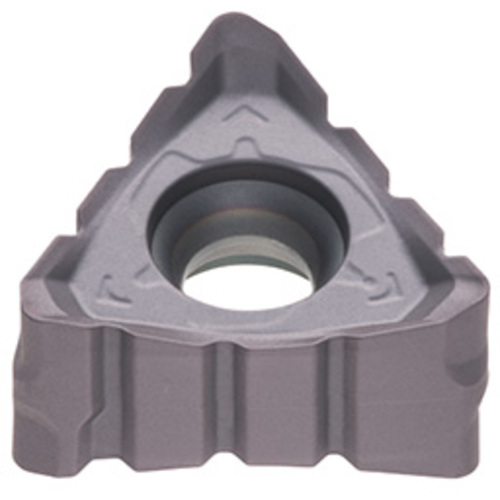

TNMU120708PER-NMJ AH120
Milling Insert; TNMU120708PER-NMJ AH120 AH120 × 0.28″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0055 in/tooth |
| Corner Radius (RE) | 0.0314″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.433″ | Minimum Feed per Tooth (fz(min)) | 0.0031 in/tooth |
| Inscribed Circle Diameter (IC) | 3/8″ | Number of Cutting Edges | 6 |
| Insert Thickness (S) | 0.28″ | Cutting Edge Effective Length (LE) | 0.472″ |
| Wiper Edge Length (BS) | 0.046″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | M-class, double-sided triangle insert with serrated 6 edges and pressed NMJ chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.02
Related Documentation

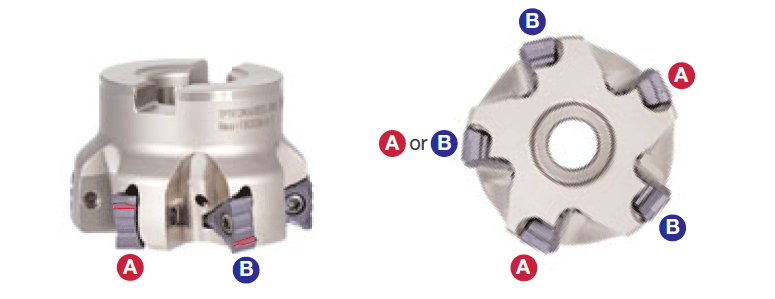

To obtain good wall accuracy, the serrated inserts must be arranged in alternative orders on the cutter so that the same serrated edge will not cut the same surface twice. One of the serration grooves (marked in red) on the cutting edge has a irregular shape. This must be placed alternatively as shown below by A and B.
