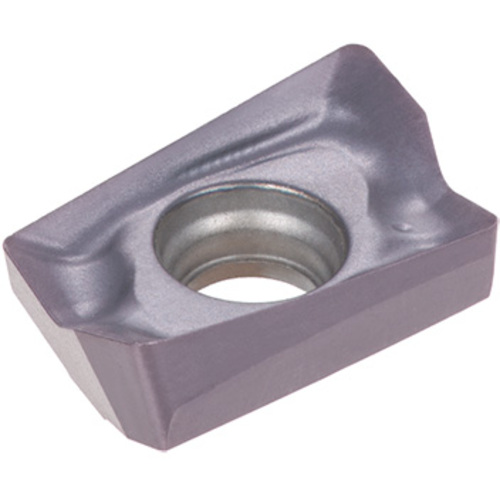

AVGT060304PBER-MJ AH130
Milling Insert; AVGT060304PBER-MJ AH130 AH130 × 0.197″ Width × 0.106″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Super-Alloys / Titanium | | Grade | AH130 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0039 in/tooth |

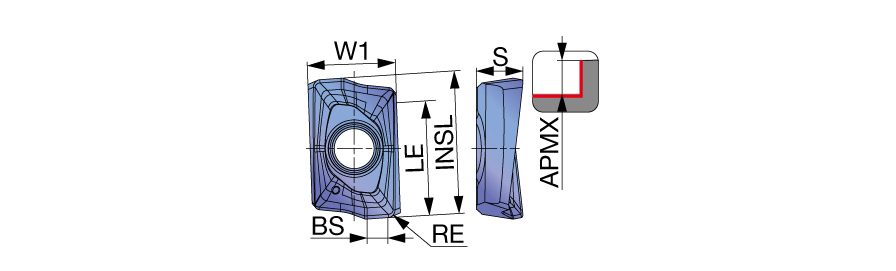

| Insert Length (INSL) | 0.315″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0157″ | Minimum Feed per Tooth (fz(min)) | 0.0016 in/tooth |
| Depth of Cut Maximum (APMX) | 0.236″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.197″ | Cutting Edge Effective Length (LE) | 0.256″ |
| Insert Thickness (S) | 0.106″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.051″ | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | Single-sided insert with 2 edges and MJ chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.1
