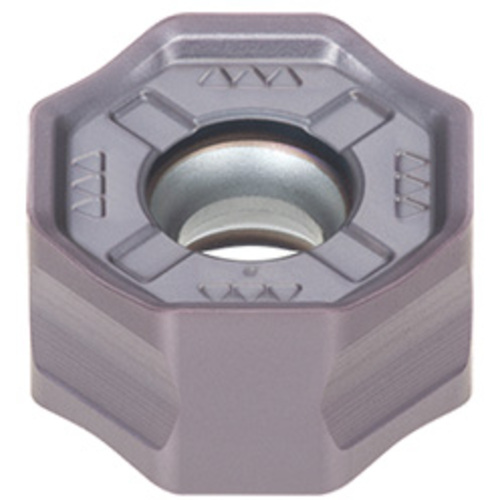

ONGU0507ANEN-W AH120
Milling Insert; ONGU0507ANEN-W AH120 AH120 × 0.293″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0197 in/tooth |

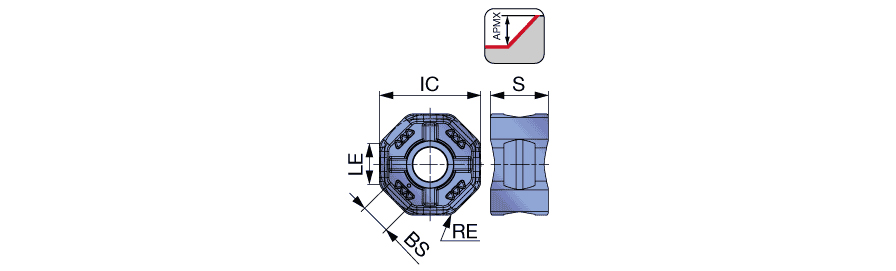

| Corner Radius (RE) | 0.0629″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.134″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Inscribed Circle Diameter (IC) | 0.512″ | Number of Cutting Edges | 16 |
| Insert Thickness (S) | 0.293″ | Cutting Edge Effective Length (LE) | 0.197″ |
| Wiper Edge Length (BS) | 0.154″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Double sided wiper insert with 8 cutting edges in using with ONGU05 insert | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.276
