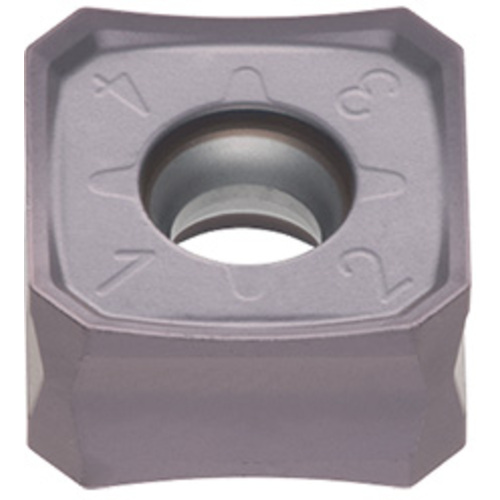

SNMU1307ANEN-MJ AH120
Milling Insert; SNMU1307ANEN MJ AH120 AH120 × 0.276″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH120 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0197 in/tooth |

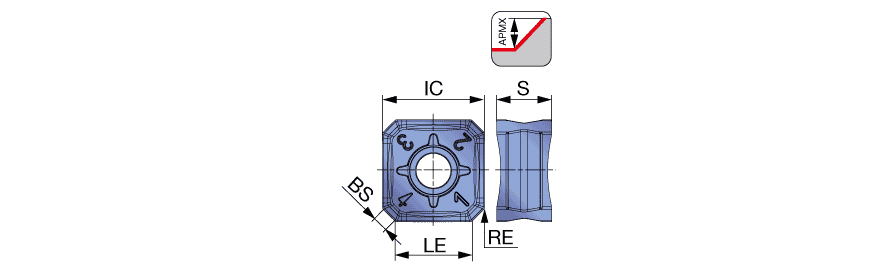

| Corner Radius (RE) | 0.0196″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Inscribed Circle Diameter (IC) | 0.512″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.276″ | Cutting Edge Effective Length (LE) | 0.37″ |
| Wiper Edge Length (BS) | 0.079″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Double-sided square inserts, M class, with 8 edges and MJ chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.045
