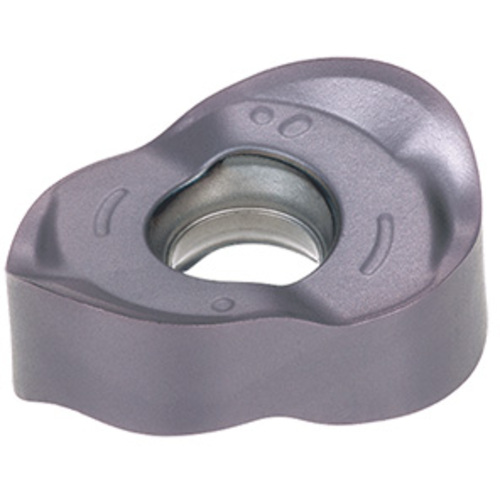

LNMX0405R4-ML AH3135
Milling Insert; LNMX0405R4-ML AH3135 AH3135 × 0.323″ Width × 0.22″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Coating | TiAlN |
| Application | | Profile Milling | | Grade | AH3135 |

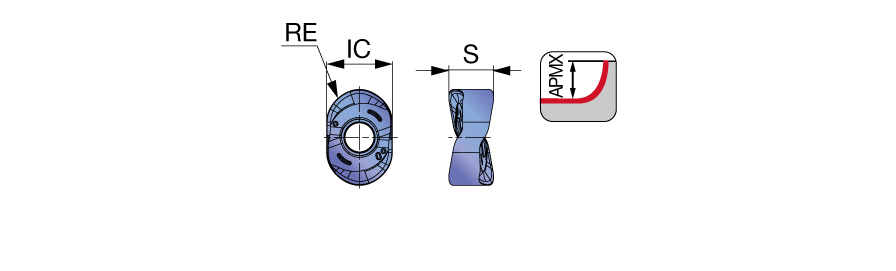

| Insert Length (INSL) | 0.472″ | Maximum Feed per Tooth (fz(max)) | 0.0236 in/tooth |
| Corner Radius (RE) | 0.1574″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ | Minimum Feed per Tooth (fz(min)) | 0.006 in/tooth |
| Insert Width (W1) | 0.323″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.323″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.22″ | Body Material | Carbide |
Product Features
| Family Description | Double-sided radius insert with 4 edges and ML chipbreaker | Country of Origin | Japan |
Shipping Info
Package Weight
0.01
