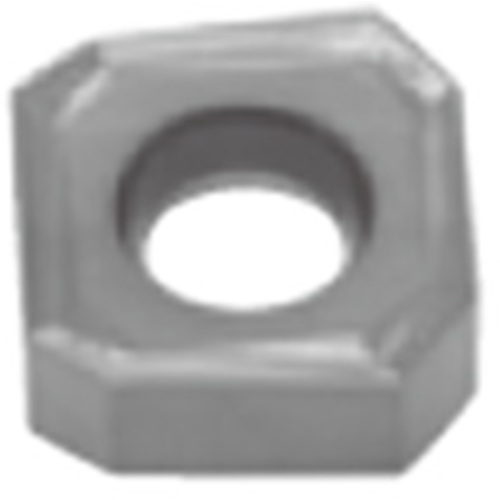

SNMU1706ANTR-ML AH3135
Milling Insert; SNMU1706ANTR-ML AH3135 AH3135 × 0.173″ Width × 0.275″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Grade | AH3135 |
| Application | | Face Milling | | Maximum Feed per Tooth (fz(max)) | 0.0157 in/tooth |

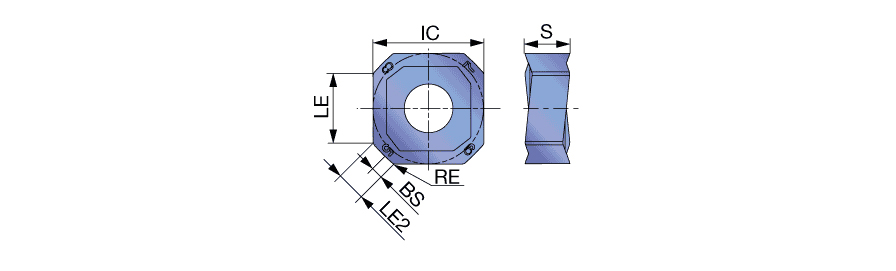

| Corner Radius (RE) | 0.0314″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.295″ | Tool Type | Double sided Inserts |
| Insert Width (W1) | 0.173″ | Minimum Feed per Tooth (fz(min)) | 0.0079 in/tooth |
| Inscribed Circle Diameter (IC) | 0.681″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.275″ | Cutting Edge Effective Length (LE) | 0.433″ |
| Wiper Edge Length (BS) | 0.071″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Double-sided square insert with 8 cutting edges, for large depth of cut | Country of Origin | Japan |
Shipping Info
Package Weight
0.043
