ZFRM160R15-MJ AH710
Milling Insert; ZFRM160R15-MJ AH710 AH710 × 4.4 mm Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Cutting Edge Material | Carbide |
| Application | | Profile Milling | | Tool Type | Single sided Inserts |

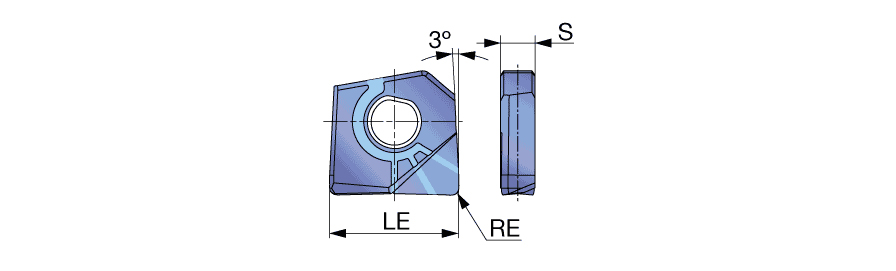

| Corner Radius (RE) | 1.5 mm | Number of Cutting Edges | 1 |
| Depth of Cut Maximum (APMX) | 3.1 mm | Cutting Edge Effective Length (LE) | 16 mm |
| Insert Thickness (S) | 4.4 mm | Measurement Type | Metric |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH710 |
Product Features
| Family Description | Radius type inserts with MJ chipbreaker for general purpose. Suitable for finishing of die & mold. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0.139
