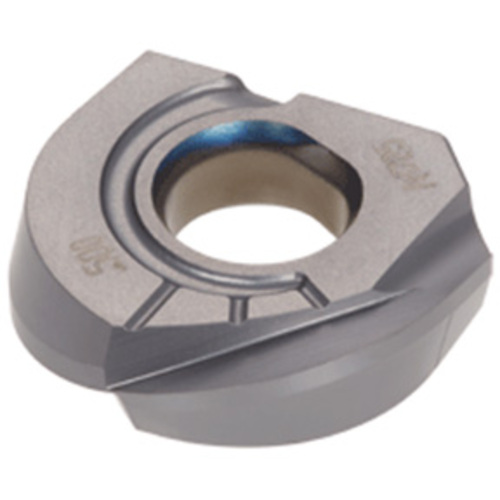

ZFBU125R00-ML AH725
Milling Insert; ZFBU125R00-ML AH725 AH725 × 0.291″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH725 |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 5/8″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 5/8″ | Number of Cutting Edges | 1 |
| Inscribed Circle Diameter (IC) | 1-1/4″ | Cutting Edge Effective Length (LE) | 1-1/4″ |
| Insert Thickness (S) | 0.291″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | Ball nose type inserts with ML chipbreaker for low cutting force. Suitable for finishing and three-dimensional milling of die & mold. | Country of Origin | S.Korea |
Shipping Info
Package Weight
0
