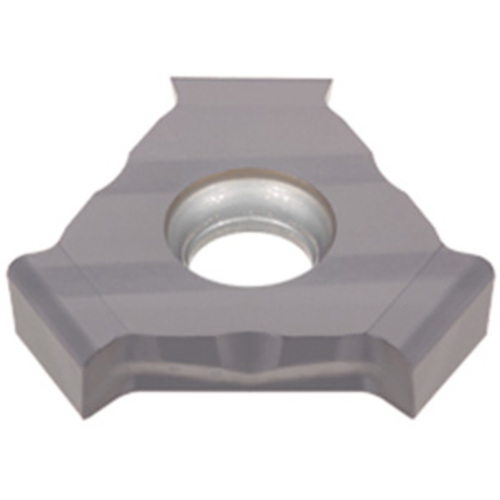

TVKX020204TN-MJ AH725
Milling Insert; TVKX020204TN-MJ AH725 AH725 × 0.094″ Width × 0.094″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | AH725 |
| Application | | Slot Milling | | Cutting Edge Material | Carbide |

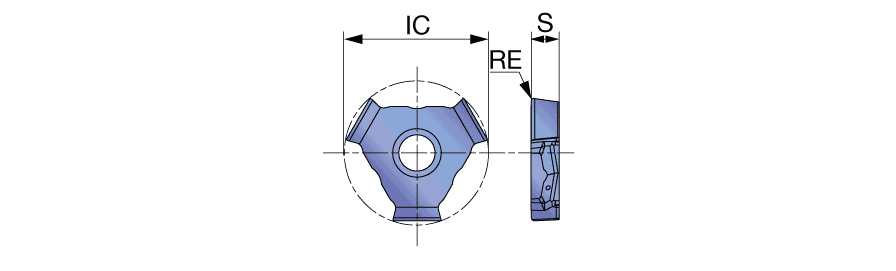

| Corner Radius (RE) | 0.0157″ | Tool Type | Mill Tangential Inserts |
| Insert Width (W1) | 0.094″ | Number of Cutting Edges | 6 |
| Inscribed Circle Diameter (IC) | 0.37″ | Measurement Type | Inch |
| Insert Thickness (S) | 0.094″ | Body Material | Carbide |
| Coating | TiAlN |
Product Features
| Family Description | Tangentially mounted inserts for slot milling cutters | Country of Origin | JAPAN |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.055
