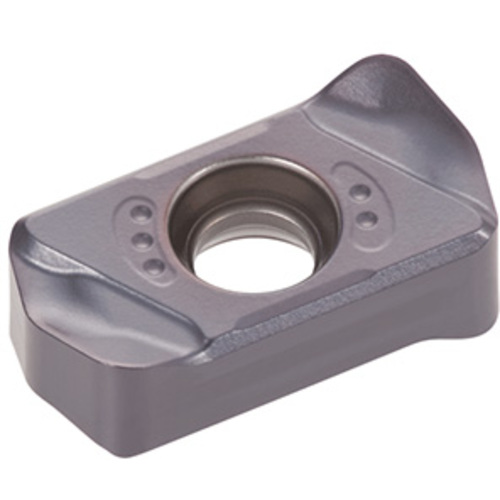

LNMU0303ZER-MJ AH120
Milling Insert; LNMU0303ZER-MJ AH120 AH120 × 0.236″ Width × 0.169″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.059 in/tooth |
| Application | | High Feed Milling | | Cutting Edge Material | Carbide |

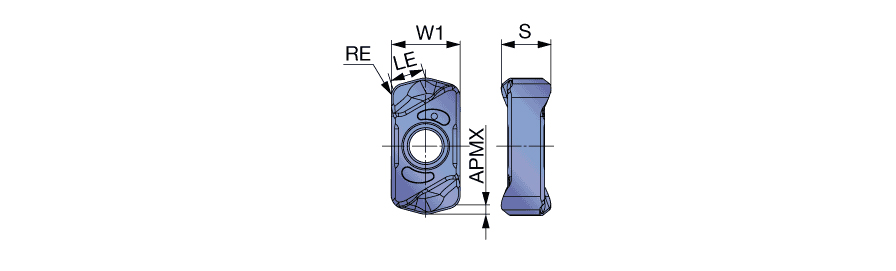

| Corner Radius (RE) | 0.0472″ | Tool Type | Double sided Inserts |
| Depth of Cut Maximum (APMX) | 0.039″ | Minimum Feed per Tooth (fz(min)) | 0.0197 in/tooth |
| Insert Width (W1) | 0.236″ | Number of Cutting Edges | 4 |
| Inscribed Circle Diameter (IC) | 0.236″ | Cutting Edge Effective Length (LE) | 0.126″ |
| Insert Thickness (S) | 0.169″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 |
Product Features
| Family Description | Double sided insert with 4 edges and MJ chipbreaker for general purpose | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.086
