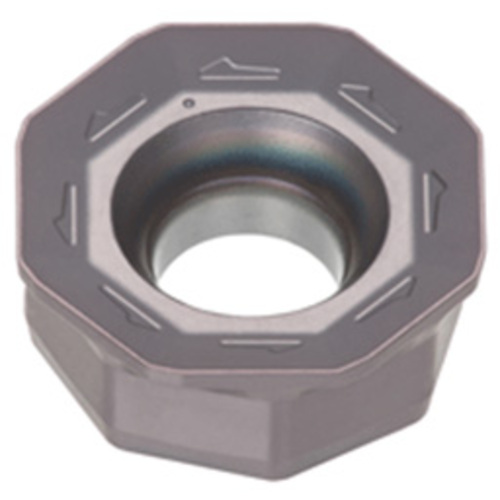

OWMT0807ZNER-HJ AH3135
Milling Insert; OWMT0807ZNER-HJ AH3135 AH3135 × 0.291″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0787 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |

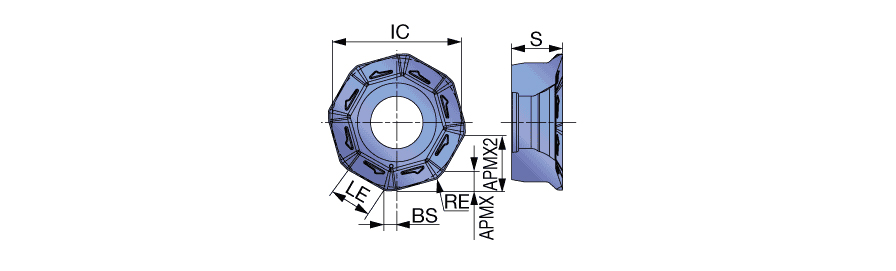

| Corner Radius (RE) | 0.0472″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.059″ | Minimum Feed per Tooth (fz(min)) | 0.0039 in/tooth |
| Inscribed Circle Diameter (IC) | 0.748″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.291″ | Cutting Edge Effective Length (LE) | 0.224″ |
| Wiper Edge Length (BS) | 0.039″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH3135 |
Product Features
| Family Description | Octagonal Milling Inserts with Positive Rake and HJ chipbreaker, for high feed face milling (8 corners available) or large DOC (4 corners available). | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.467
