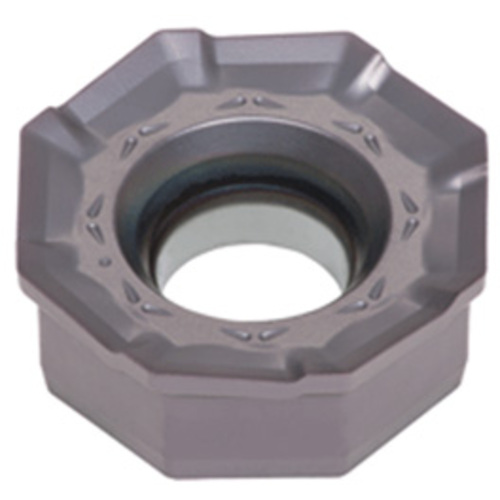

OWMT0807AAER-ML AH3135
Milling Insert; OWMT0807AAER-ML AH3135 AH3135 × 0.291″ Thickness ; Carbide ; TiAlN

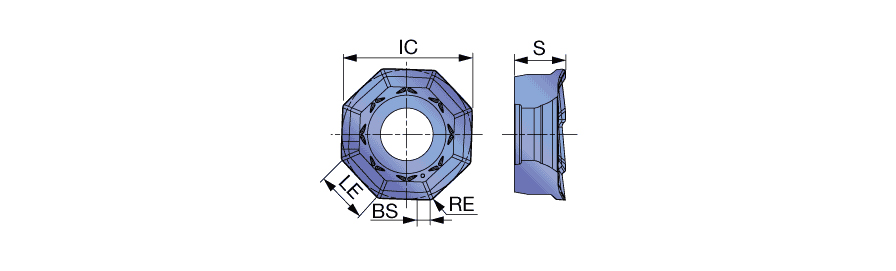

| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0197 in/tooth |
| Application | | Face Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0314″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.138″ | Minimum Feed per Tooth (fz(min)) | 0.004 in/tooth |
| Inscribed Circle Diameter (IC) | 0.744″ | Number of Cutting Edges | 8 |
| Insert Thickness (S) | 0.291″ | Cutting Edge Effective Length (LE) | 0.205″ |
| Wiper Edge Length (BS) | 0.047″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH3135 |
Product Features
| Family Description | Octagonal Milling Inserts with Positive Rake and ML chipbreaker for low cutting force, 8 corners available | Country of Origin | Japan |
Shipping Info
Package Weight
0.046
