RNGN 45-E TS300

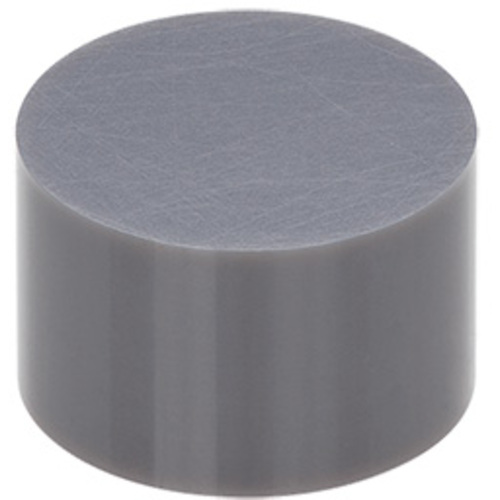

Milling Insert; RNGN 45-E TS300 TS300 × 0.313″ Thickness
| Applicable Material | | Super-Alloys / Titanium | | Grade | TS300 |
| Application | | Face Milling | Inserts | | Maximum Feed per Tooth (fz(max)) | 0.0079 in/tooth |
| Corner Radius (RE) | 1/4″ | Cutting Edge Material | Ceramic |
| Depth of Cut Maximum (APMX) | 0.079″ | Tool Type | Double sided Inserts |
| Inscribed Circle Diameter (IC) | 1/2″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Insert Thickness (S) | 0.313″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | Double-sided round ceramic insert without chipbreaker for machining high temperature alloy | Country of Origin | S.Korea |

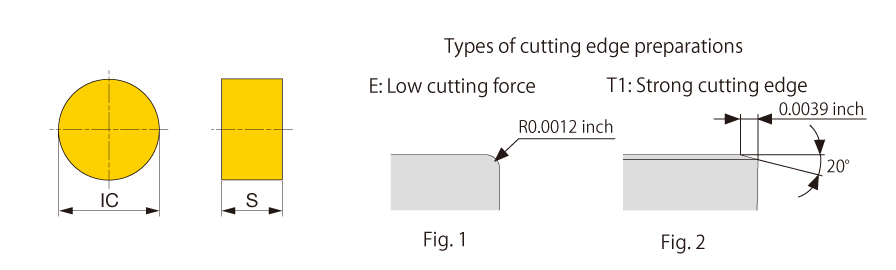

| Remarks | The last letter of designation means types of cutting edge preparations as below. E: Low cutting force type T1: Strong cutting edge type |
Shipping Info
Package Weight
0.35
