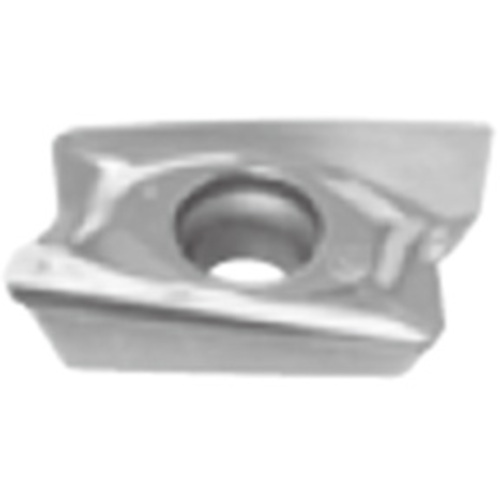

AOGT180508PDFR-AJ KS15F
Milling Insert; AOGT180508PDFRAJ KS15F KS15F × 0.425″ Width × 0.24″ Thickness ; Carbide
| Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | KS15F |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0098 in/tooth |

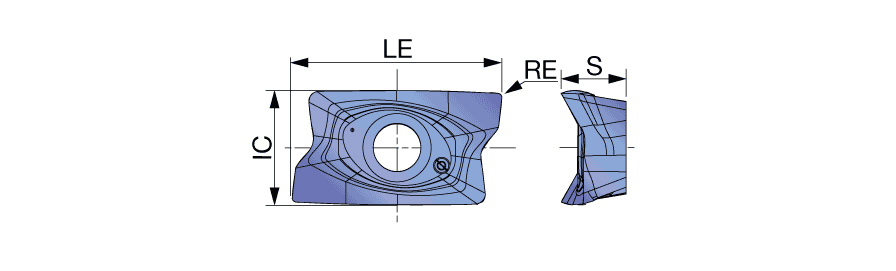

| Insert Length (INSL) | 0.78″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0314″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.657″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Insert Width (W1) | 0.425″ | Number of Cutting Edges | 2 |
| Inscribed Circle Diameter (IC) | 0.425″ | Cutting Edge Effective Length (LE) | 0.78″ |
| Insert Thickness (S) | 0.24″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.092″ | Body Material | Carbide |
| Coating | Uncoated |
Product Features
| Family Description | High precision ground insert with AJ chipbreaker for aluminum machining | Country of Origin | Israel |
Shipping Info
Package Weight
0.022
