RCMT1204EN-MJ AH120

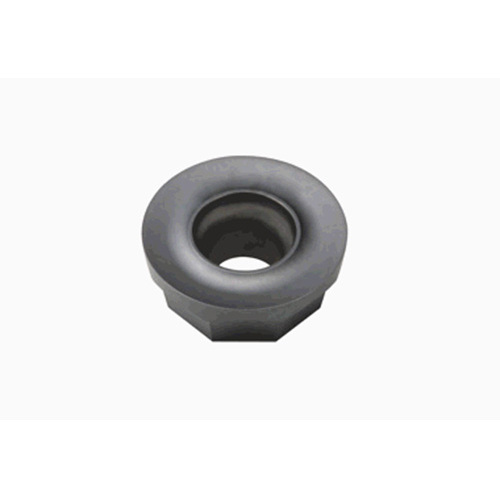

Milling Insert; RCMT1204ENMJ AH120 AH120 × 0.189″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0276 in/tooth |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2362″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.008 in/tooth |
| Inscribed Circle Diameter (IC) | 0.472″ | Number of Cutting Edges | 6 |

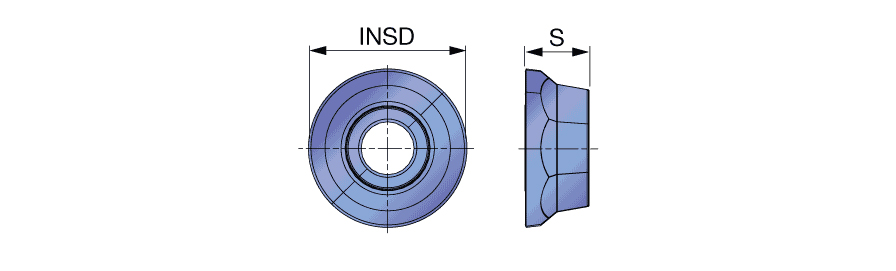

| Insert Thickness (S) | 0.189″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH120 |
Product Features
| Family Description | Round insert for RoundSplit cutters with economical 8 indexes available | Country of Origin | Germany |
Shipping Info
Package Weight
0.013
