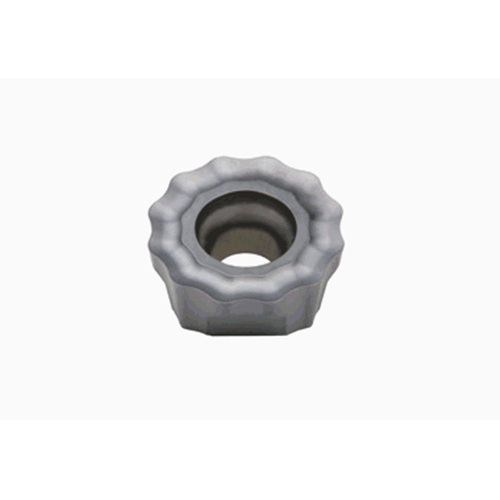

RCMT1204EN-NMJ AH725
Milling Insert; RCMT1204ENNMJ AH725 AH725 × 0.189″ Thickness ; Carbide ; TiAlN
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0098 in/tooth |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2362″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0067 in/tooth |

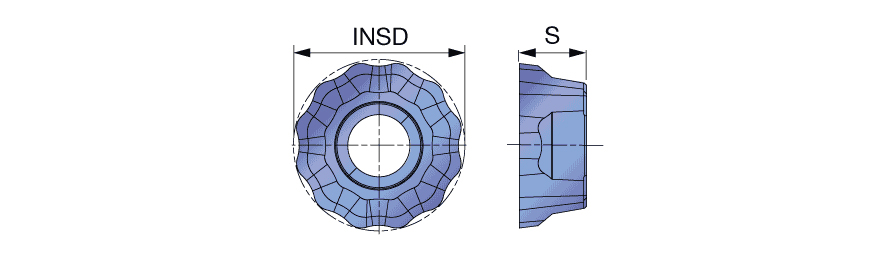

| Inscribed Circle Diameter (IC) | 0.472″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.189″ | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
| Grade | AH725 |
Product Features
| Family Description | Insert for RoundSplit cutters with serated edges for drasticreduction of chattering | Country of Origin | Germany |
Shipping Info
Package Weight
0.013
