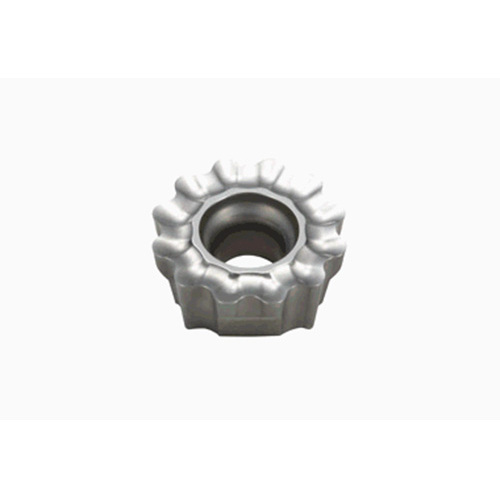

RCMT1204FN-NAJ KS15F
Milling Insert; RCMT1204FNNAJ KS15F KS15F × 0.189″ Thickness ; Carbide
| Applicable Material | | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Maximum Feed per Tooth (fz(max)) | 0.0098 in/tooth |
| Application | | Profile Milling | | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.2362″ | Tool Type | Single sided Inserts |
| Depth of Cut Maximum (APMX) | 0.236″ | Minimum Feed per Tooth (fz(min)) | 0.0067 in/tooth |

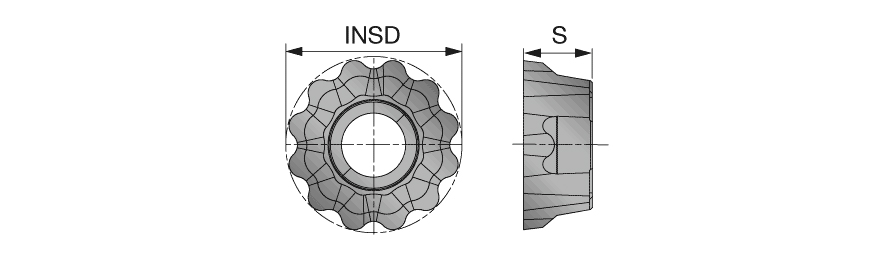

| Inscribed Circle Diameter (IC) | 0.472″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.189″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
| Grade | KS15F |
Product Features
| Family Description | Insert for RoundSplit cutters with lapped surface and serated edge for aluminum machining | Country of Origin | Germany |
Shipping Info
Package Weight
0.012
