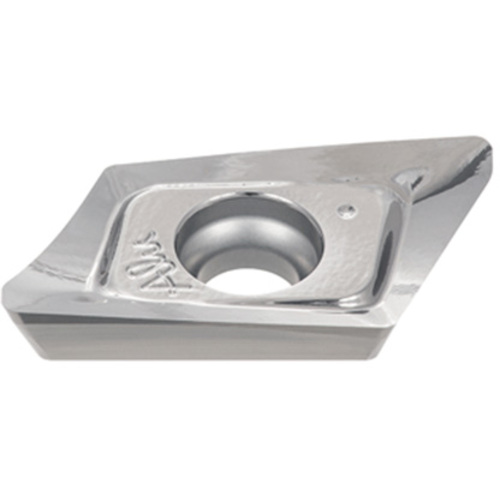

XVCT160512R-AJ TH10
Milling Insert; XVCT160512R-AJ TH10 TH10 × 0.441″ Width × 0.228″ Thickness ; Carbide
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | TH10 |
| Application | | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0138 in/tooth |

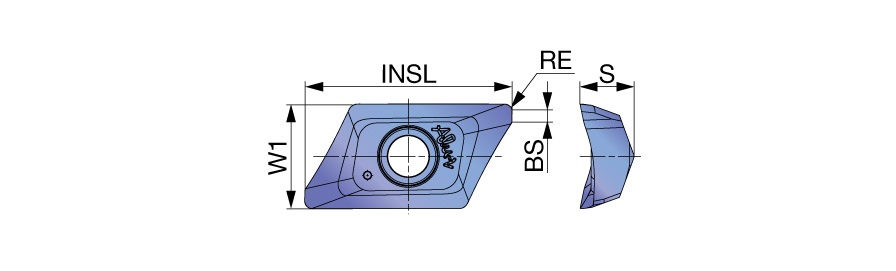

| Insert Length (INSL) | 0.858″ | Cutting Edge Material | Carbide |
| Corner Radius (RE) | 0.0472″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Depth of Cut Maximum (APMX) | 0.61″ | Minimum Feed per Tooth (fz(min)) | 0.0027 in/tooth |
| Insert Width (W1) | 0.441″ | Number of Cutting Edges | 2 |
| Insert Thickness (S) | 0.228″ | Measurement Type | Inch |
| Wiper Edge Length (BS) | 0.039″ | Body Material | Carbide |
Product Features
| Family Description | Insert with AJ chipbreaker for aluminum machining | Country of Origin | S.Korea |
| Remarks | XVCT AJ inserts can be used with a TPV/EPV cutter. DO NOT use XVCT AJ inserts with a TPXV/EPXV cutter. This may cause tool and machine damage. |
Shipping Info
Package Weight
0.023
