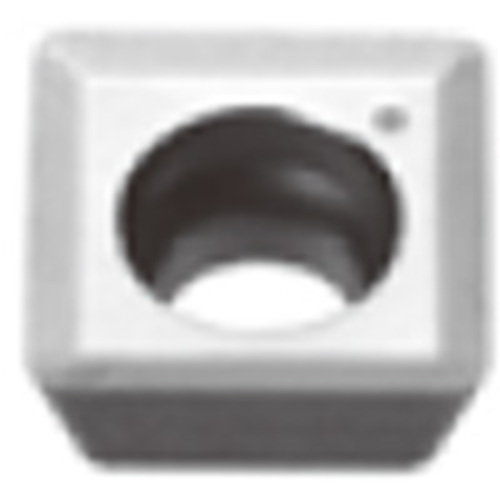

SDHT050204FN-AJ TH10
Milling Insert; SDHT050204FNAJ TH10 TH10 × 0.2″ Width × 0.094″ Thickness ; Carbide
| Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | | Grade | TH10 |
| Application | | Multi Functional tools | Shoulder Milling | | Maximum Feed per Tooth (fz(max)) | 0.0059 in/tooth |

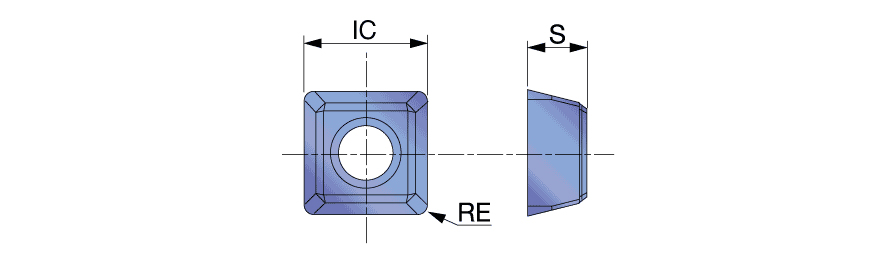

| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.157″ | Tool Type | Mill AL, HTA Geometric Inserts |
| Insert Width (W1) | 0.2″ | Minimum Feed per Tooth (fz(min)) | 0.002 in/tooth |
| Inscribed Circle Diameter (IC) | 0.2″ | Number of Cutting Edges | 4 |
| Insert Thickness (S) | 0.094″ | Measurement Type | Inch |
| Coating | Uncoated | Body Material | Carbide |
Product Features
| Family Description | High precision ground insert with AJ chipbreaker for aluminum machining | Country of Origin | Japan |
Shipping Info
Package Weight
0.004
