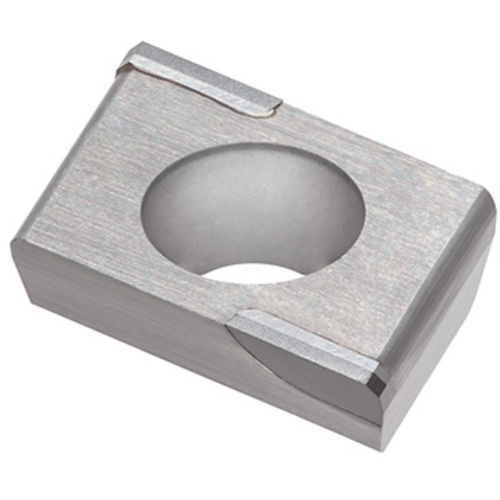

YPEB12X3-2P07R-D DX160

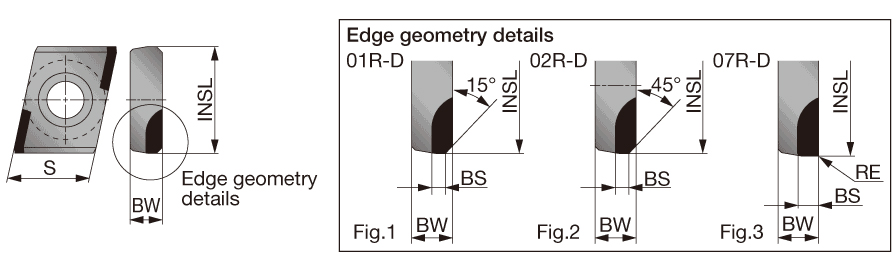

| Applicable Material | | Aluminum / Non-Ferrous Materials | | Wiper Edge Length (BS) | 0.081″ |
| Application | | Face Milling | | Coating | Uncoated |
| Insert Length (INSL) | 0.507″ | Grade | DX160 |
| Corner Radius (RE) | 0.0157″ | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 0.157″ | Number of Cutting Edges | 2 |
| Insert Width (W1) | 0.152″ | Measurement Type | Inch |
| Insert Thickness (S) | 3/8″ | Body Material | Carbide |
Product Features
| Family Description | Double cutting edge insert for T/EPYP12, applicable cutter dia. is less than 1.969 inch. | Country of Origin | Japan |
