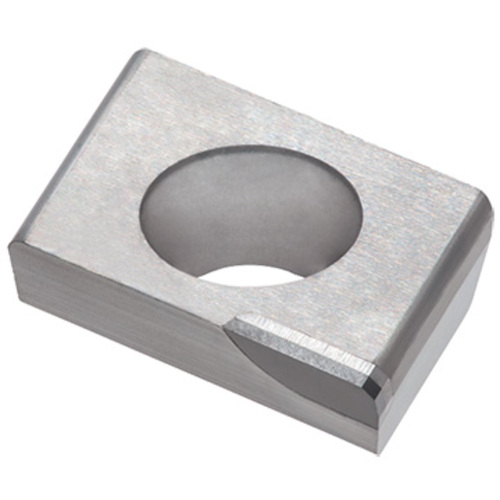

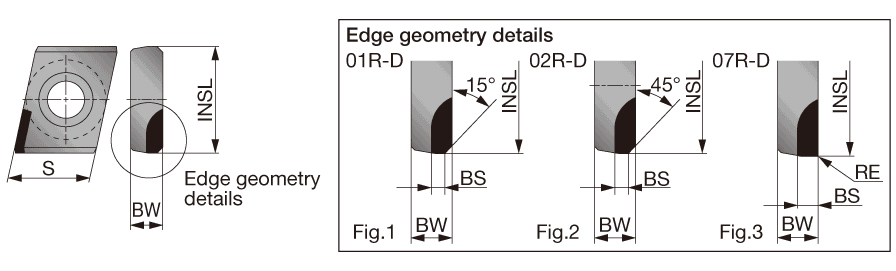

YPEB12X3-1P02R-D DX160
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Wiper Edge Length (BS) | 0.054″ |
| Application | | Face Milling | | Coating | Uncoated |
| Insert Length (INSL) | 0.505″ | Grade | DX160 |
| Corner Radius (RE) | 0″ | Cutting Edge Material | PCD |
| Depth of Cut Maximum (APMX) | 0.157″ | Number of Cutting Edges | 1 |
| Insert Width (W1) | 0.152″ | Measurement Type | Inch |
| Insert Thickness (S) | 3/8″ | Body Material | Carbide |
Product Features
| Family Description | Single cutting edge insert for T/EPYP12, applicable cutter dia. is less than 1.969 inch. | Country of Origin | ITALY |
Shipping Info
Package Weight
0.051
