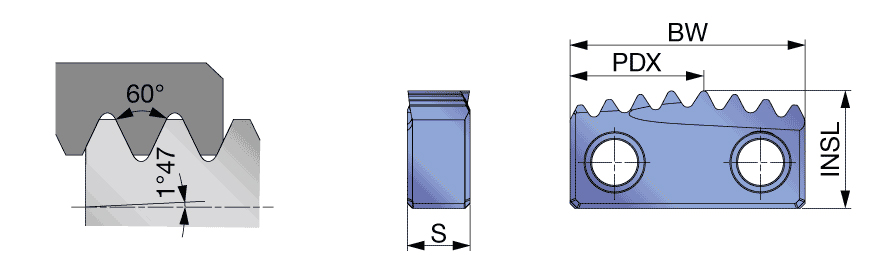

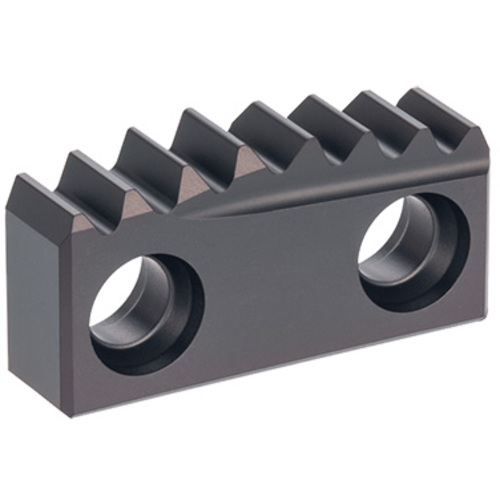

CR-8R-4I-W24 T05TP
| Thread Pitch (TP) | 5.08 mm | Cutting Direction (HAND) | Right Hand |
| Threads per Inch (TPI) | 5 | Application | | Inserts | |
| Insert Thickness (S) | 0.252″ | Tool Type | External Non-Rotating Threading Tools |
| Grade | T05TP | Measurement Type | Inch |
| Coating | TiCN+Al2O3 | Body Material | Carbide |
| Cutting Edge Material | Carbide | Insert Length (INSL) | 0.472″ |
Product Features
| Family Description | Internal API Round (for Energy industry), Full-profile insert | Country of Origin | Japan |
| Remarks | Note: Toolholders need to be customized for these types of inserts. |
Shipping Info
Package Weight
20.4
