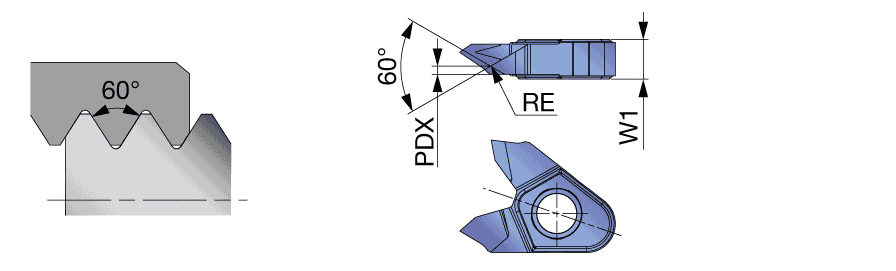

VGT10F-60A-010 SH725
| Corner Radius (RE) | 0.0039″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.35″ | Thread Pitch Minimum (TPN) | 1 mm |
| Grade | SH725 | Thread Pitch Maximum (TPX) | 2 mm |
| Coating | TiAlN | Threads per Inch Maximum (TPIX) | 25 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 12 |
| Cutting Direction (HAND) | Neutral | Measurement Type | Inch |
| Application | | Inserts | | Body Material | Carbide |
Product Features
| Family Description | Threading insert with 2 cutting edges, external 60 deg thread angle, partial profile, sharp edge | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.000
