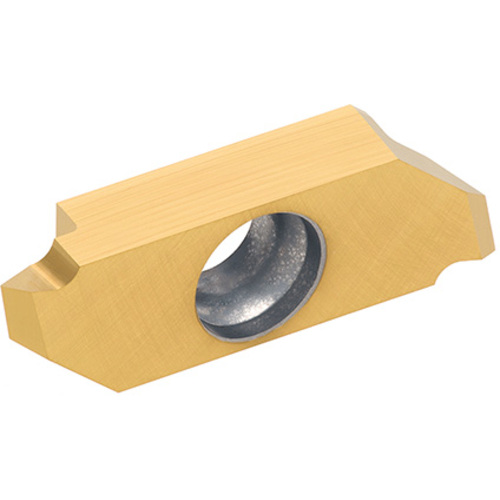

JXT1R6000F TH10
| Corner Radius (RE) | 0.0012″ | Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Insert Thickness (S) | 0.156″ | Thread Pitch Minimum (TPN) | 0.5 mm |
| Inscribed Circle Diameter (IC) | 0.315″ | Thread Pitch Maximum (TPX) | 1 mm |
| Grade | TH10 | Tool Type | Threading Regular Inserts |
| Coating | Uncoated | Threads per Inch Maximum (TPIX) | 48 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 25 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Inserts | | Body Material | Carbide |
Product Features

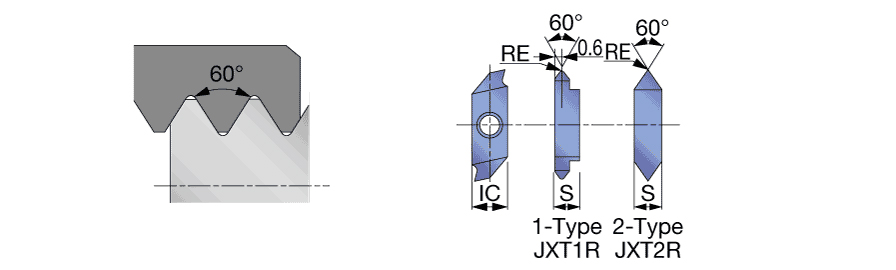

| Family Description | External 60 deg, Partial profile, Pitch 0.5 to 1 mm | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.207
