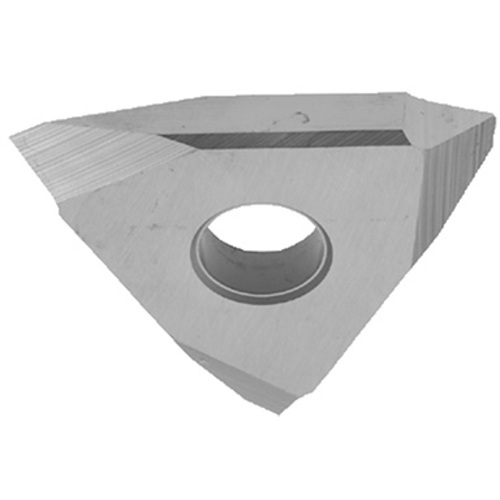

TTR42W-005 TH10

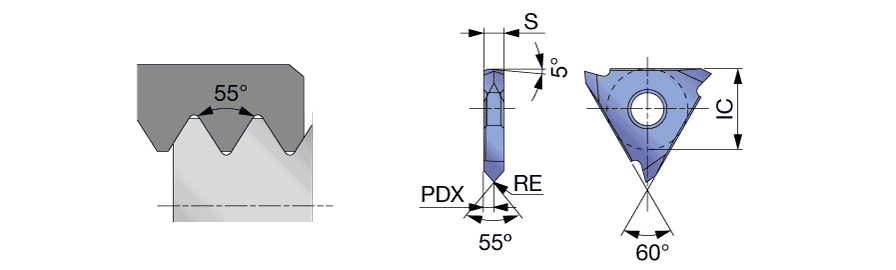

| Corner Radius (RE) | 0.002″ | Application | | Inserts | |
| Insert Thickness (S) | 0.126″ | Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 1/2″ | Thread Pitch Maximum (TPX) | 3 mm |
| Grade | TH10 | Tool Type | Threading Regular Inserts |
| Coating | Uncoated | Threads per Inch Maximum (TPIX) | 8 |
| Cutting Edge Material | Carbide | Measurement Type | Inch |
| Cutting Direction (HAND) | Right Hand | Body Material | Carbide |
Product Features
| Family Description | TT type External & internal 55 deg, Partial profile, Pitch 3 mm or under | Country of Origin | JAPAN |
Shipping Info
Package Weight
0.134
