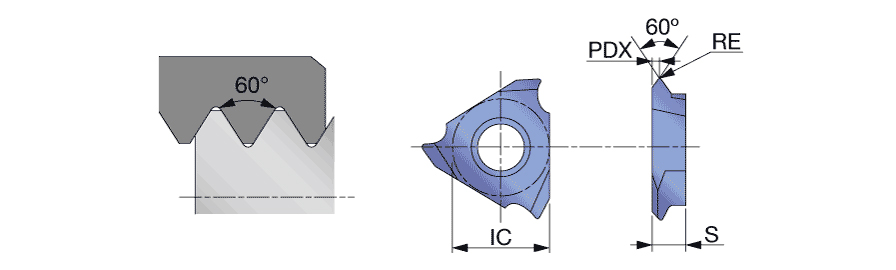

| Corner Radius (RE) | 0.0039″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Thickness (S) | 1/8″ | Thread Pitch Minimum (TPN) | 0.5 mm |
| Inscribed Circle Diameter (IC) | 3/8″ | Thread Pitch Maximum (TPX) | 1 mm |
| Grade | J740 | Tool Type | Threading Regular Inserts |
| Coating | TiN | Threads per Inch Maximum (TPIX) | 48 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 25 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Inserts | | Body Material | Carbide |

Product Features
| Family Description | External 60 deg, Partial profile, Pitch 0.5 to 1 mm | Country of Origin | Japan |
| Remarks | "F" included in designation means sharp edge. |
Shipping Info
Package Weight
0.011
