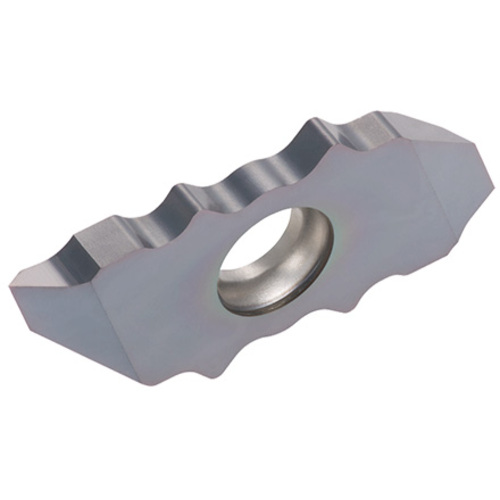

JXTG12FR-60A-000 SH725
| Grade | SH725 | Thread Pitch Maximum (TPX) | 0.4 mm |
| Coating | TiAlN | Threads per Inch Maximum (TPIX) | 127 |
| Cutting Edge Material | Carbide | Threads per Inch Minimum (TPIN) | 64 |
| Cutting Direction (HAND) | Right Hand | Measurement Type | Inch |
| Application | | Inserts | | Body Material | Carbide |
| Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | | Insert Length (INSL) | 0.984″ |
| Thread Pitch Minimum (TPN) | 0.2 mm |
Product Features

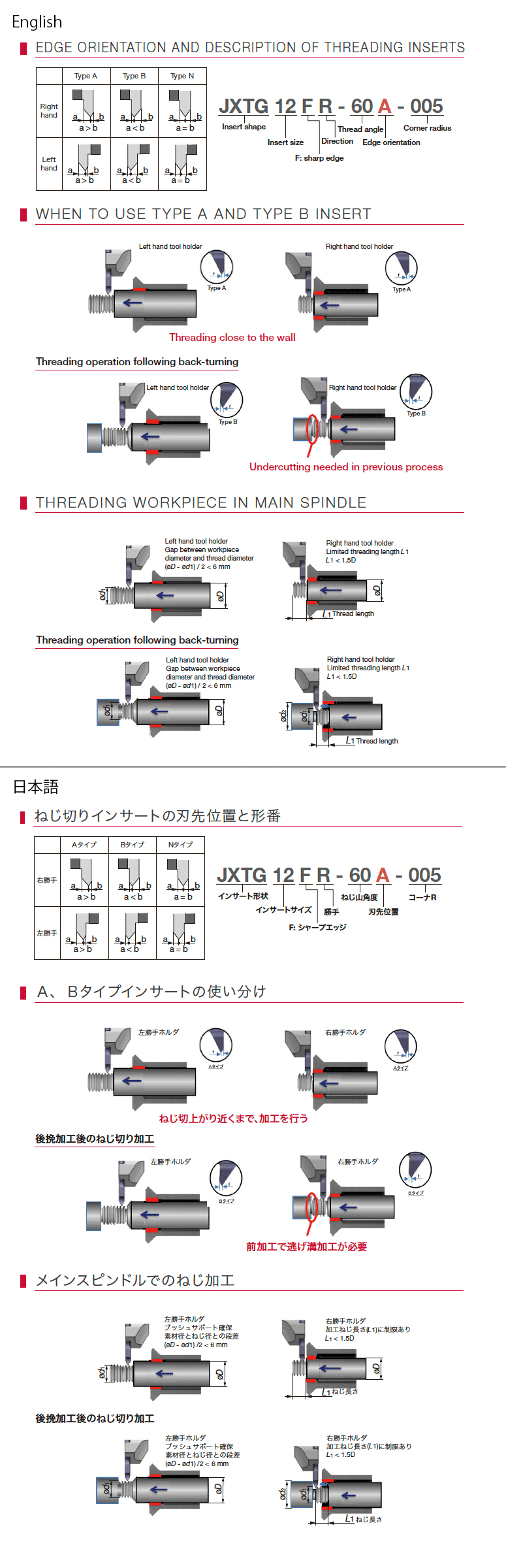

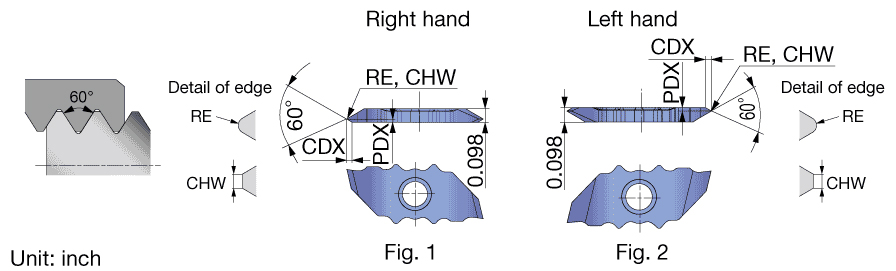

| Family Description | Double-ended threading insert, external 60 deg thread angle, partial profile, sharp edge. | Country of Origin | JAPAN |
| Remarks | JXTG12... 000 has a flat top of max 0.05 mm. |
Shipping Info
Package Weight
0.117
