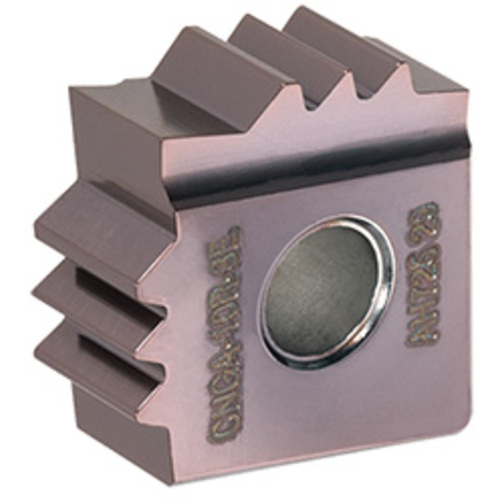

CNGA-8R-3E AH725

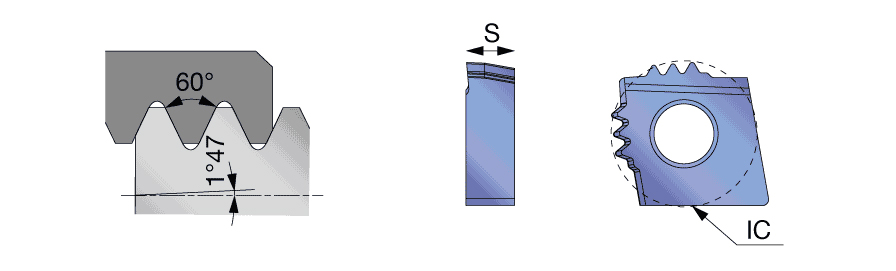

| Thread Pitch (TP) | 3.175 mm | Cutting Edge Material | Carbide |
| Threads per Inch (TPI) | 8 | Cutting Direction (HAND) | Right Hand |
| Insert Thickness (S) | 0.252″ | Application | | Inserts | |
| Inscribed Circle Diameter (IC) | 3/4″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Grade | AH725 | Measurement Type | Inch |
| Coating | TiAlN | Body Material | Carbide |
Product Features
| Family Description | External chaser inserts for API Round, 2 corners available, applicable on turning toolholders | Country of Origin | USA |
| Remarks | Note: Toolholder should be designed and ordered individualy. |
Shipping Info
Package Weight
0.397
