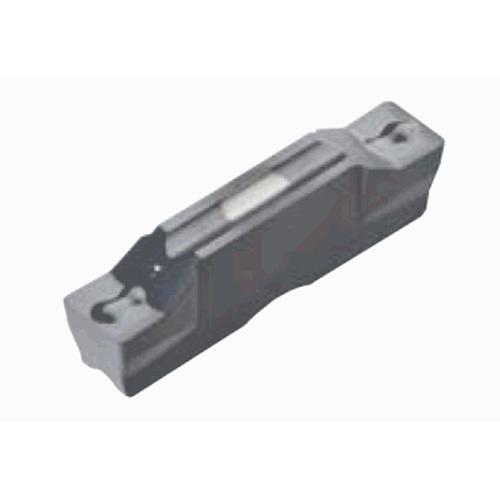

DTI4-040 NS9530
Grooving Insert; 0.157″ CW × 0.728″ Max Depth ; Cermet ; NS9530 ; Uncoated
| Cutting Width (CW) | 0.157″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Corner Radius (RE) | 0.0157″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.728″ | Number of Cutting Edges | 2 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Tool Type | Groove-Turn Precision Inserts |
| Cutting Edge Material | Cermet | Body Material | Carbide |
| Application | | Inserts | |
Product Features
| Family Description | Double-ended inserts, 1st choice for internal grooving & turning, tolerance of insert width +-0.0008 inch (only DTI3-040 & DTI4-040 +-0.002 inch) | Country of Origin | JAPAN |
| Remarks | For "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.068
