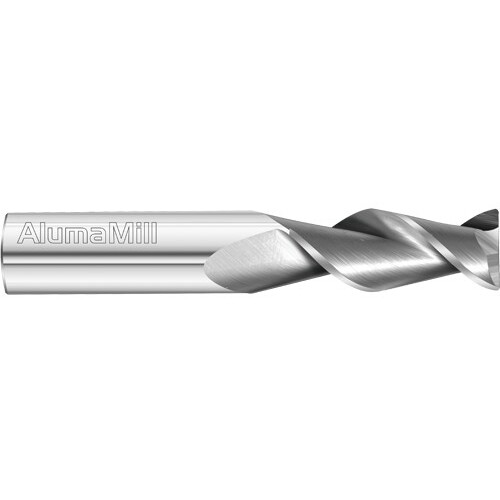

Corner Radius End Mill; 1″ Dia. × 1-3/4″ LOC × 1″ Shank Dia. × 5″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 3825
SQ End Mill; 1″ Dia. × 1-3/4″ LOC × 1″ Shank Dia. × 5″ OAL ; 2 FL ; Carbide ; Uncoated ; Series 3825
| Cutting Diameter (DC) | 1″ | Shank Type | Round |
| Connection Diameter Machine Side (DCONMS) | 1″ | End Shape | Corner Radius |
| Depth of Cut Maximum (APMX) | 1-3/4″ | Corner Radius (RE) | 0.015″ |
| Overall Length (OAL) | 5″ | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | Uncoated | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 2 | Decimal Equivalent | 1″ |
| Flute Helix Angle (FHA) | 45 Degrees | Series/List # | 3825 |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
1.630
