VGP10-075F-000 SH725
Grooving Insert; 0.03″ CW × 0.118″ Max Depth ; Carbide ; SH725 ; TiAlN
| Cutting Width (CW) | 0.03″ | Application | | Inserts | |
| Corner Radius (RE) | 0″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.118″ | Cutting Direction (HAND) | Neutral |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | SH725 | Tool Type | Parting & Grooving Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Grooving insert with 2 cutting edges, sharp edge | Country of Origin | JAPAN |
| Remarks | Max grooving depth varies depending on workpiece diameters. For Max grooving depth, click on "More Info". |
Shipping Info
Package Weight
0.000
Related Documentation

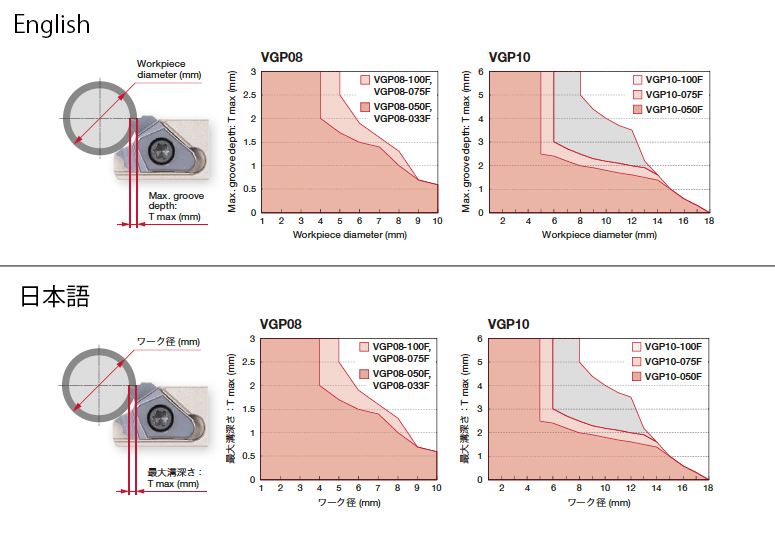

Note: Max grooving depths vs workpiece diameters @To avoid tool interference with the workpiece, max grooving depths (T max) for the insert used may be smaller than the CDX values of insert depending on the workpiece diameter.
