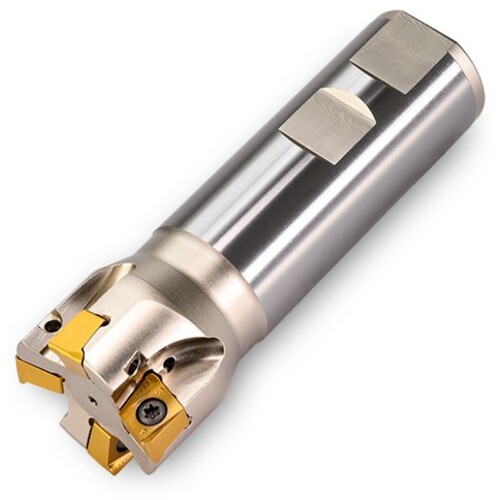

1TJ1G032040W6R00
Indexable End Mill; 1.26″ Dia. × 0.413″ LOC × 1.26″ Shank Dia. × 4.331″ OAL × 1.496″ LU ; 4 FL ; Round Shank ; 90 Degrees
| Cutting Diameter (DC/DCX) | 1.26″ | Head Length (LH) | 30 mm |
| Cutting Diameter (DC) | 1.26″ | Tool Type | 90° indexable endmills |
| Cutting Item Count (CICT) | 3 | Usable Length (LU) | 1.496″ |
| Depth of Cut Maximum (APMX) | 0.413″ | Flute Count (NOF) | 4 |
| Overall Length (OAL) | 4.331″ | Coolant Supply Property (CSP) | Coolant Thru |
| Shank Type | Round | Tool Cutting Edge Angle (KAPR) | 90 Degrees |
| Ramping Angle Maximum (RMPX) | 2.1 Degrees | Cutting Direction (HAND) | Right Hand |
| Application | | Facing | Helical Interpolation | Rampdown | Shouldering | Slotting | | Measurement Type | Inch |
| Connection Diameter Machine Side (DCONMS) | 1.26″ | Body Material | Steel |
| Master Insert Identification (MIID) | HM390 TDKT 1505PDR | Protruding Length (LPR) | 1.968″ |
| Weight of Item (WT) | 0.73 Kg | Connection Code Machine Side (CCMS) | Cylindrical |
Product Features
| Family Description | 32-63 Ra finishes when using insert with integrated wiper (WEP) 63-125 Ra finishes when using insert with no integrated wiper | Country of Origin | Germany |
Shipping Info
Package Weight
1.316
