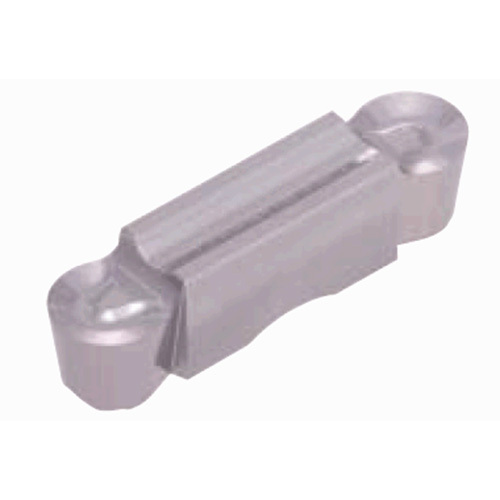

DTA600-300 TH10
Grooving Insert; 0.236″ CW × 0.866″ Max Depth ; Carbide ; TH10 ; Uncoated

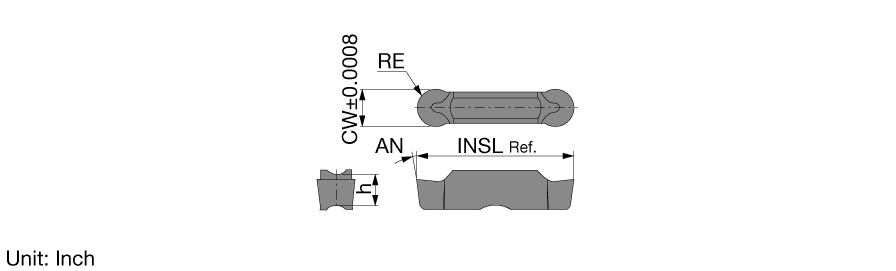

| Cutting Width (CW) | 0.236″ | Application | | Inserts | |
| Corner Radius (RE) | 0.1181″ | Applicable Material | | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Cutting Depth Maximum (CDX) | 0.866″ | Cutting Direction (HAND) | Neutral |
| Clearance Angle Major (AN) | 7 Degrees | Number of Cutting Edges | 2 |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | TH10 | Tool Type | Groove Turn AL,HTA Inserts Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features

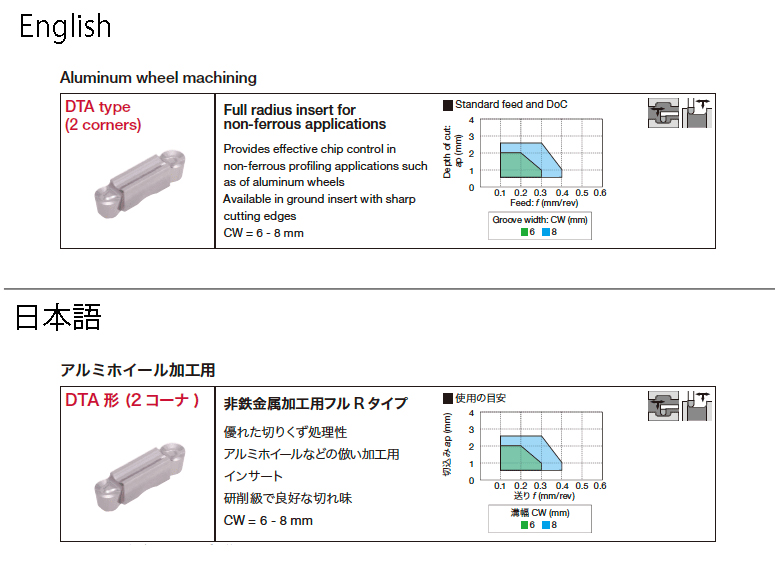

| Family Description | Full radius, precision double-ended inserts for machining aluminum wheel, tolerance of insert width +-0.0008 inch | Country of Origin | S.Korea |
| Remarks | For "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.267
