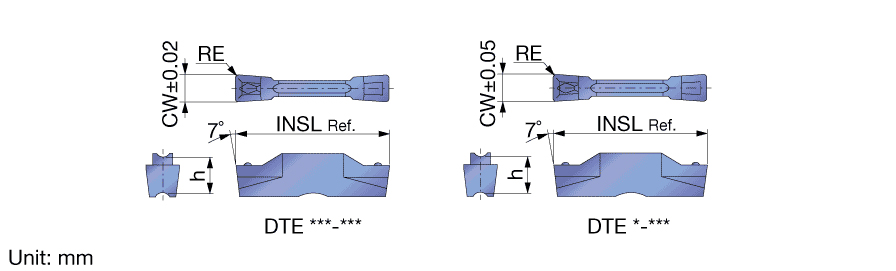

DTE600-120 AH725
Grooving Insert; 6 mm CW × 23.5 mm Max Depth ; Carbide ; AH725 ; TiAlN
| Cutting Width (CW) | 6 mm | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 1.2 mm | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 23.5 mm | Number of Cutting Edges | 2 |
| Coating | TiAlN | Measurement Type | Metric |
| Grade | AH725 | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Inserts | |
Product Features

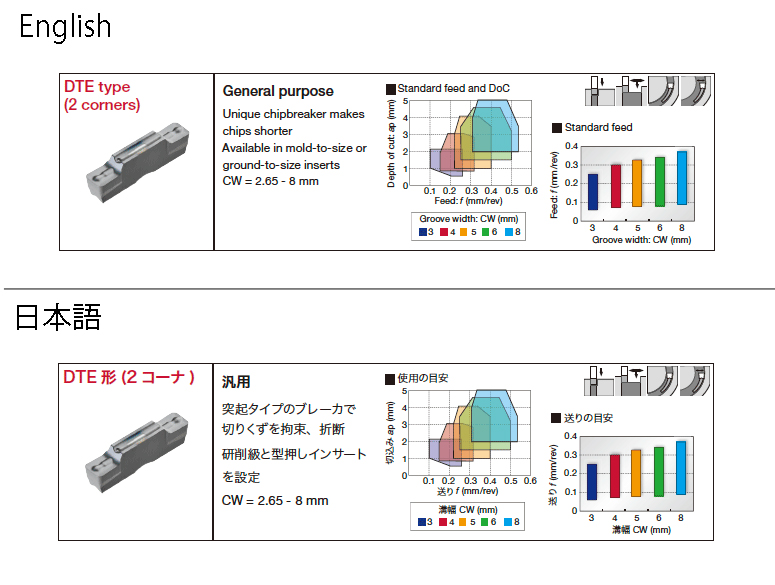

| Family Description | Precision double-ended inserts for external/face grooving & turning, tolerance of insert width +-0.02mm (only DTE3-,4-,5-,6-*** +-0.05mm) | Country of Origin | S.Korea |
| Remarks | For "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.028
