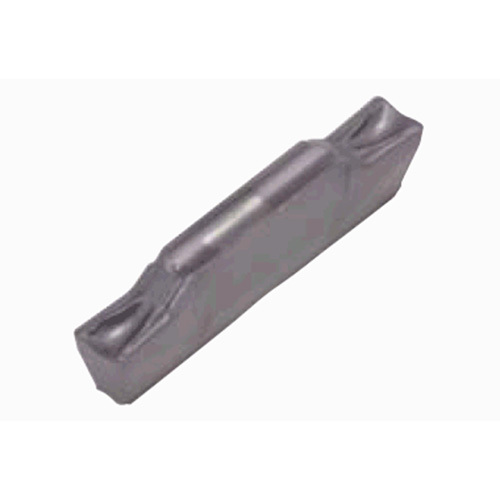

DTX3-030 AH8005
Grooving Insert; 0.118″ CW × 0.728″ Max Depth ; Carbide ; AH8005 ; AlTiN
| Cutting Width (CW) | 0.118″ | Applicable Material | | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Corner Radius (RE) | 0.0118″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.728″ | Number of Cutting Edges | 2 |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | AH8005 | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Inserts | |
Product Features

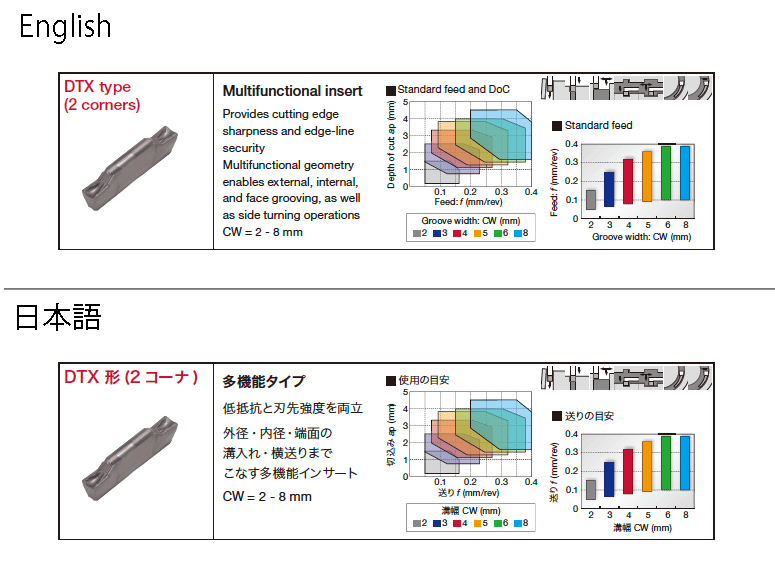

| Family Description | Double-ended inserts for external / internal / face grooving & turning, tolerance of insert width +-0.002 inch | Country of Origin | Japan |
| Remarks | For "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0
Related Documentation
