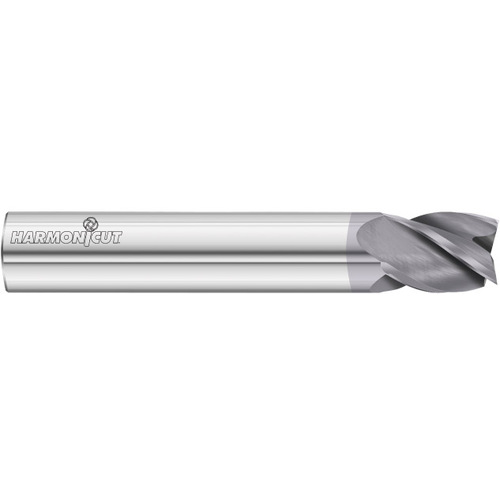

Square End Mill; 3/4″ Dia. × 7/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3400

‹ ›

Square End Mill; 3/4″ Dia. × 7/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3400

SQ End Mill; 3/4″ Dia. × 7/8″ LOC × 3/4″ Shank Dia. × 4″ OAL ; 4 FL ; Carbide ; FC18 ; Series 3400

Item # FT8534910

Brand: Fullerton Tool

MFG #: 34910

Legacy Part #: FT8534910

TradeName: 3400 Harmon-i-Cut End Mill

Quantity Available

Cutting Diameter (DC)

3/4″

Shank Type

Round

Connection Diameter Machine Side (DCONMS)

3/4″

End Shape

Square

Depth of Cut Maximum (APMX)

7/8″

Tool Type

Center Cut|Single-End

Overall Length (OAL)

4″

Length Group

Short|Stub

Cutting Edge Material

Carbide

Coolant Supply Property (CSP)

External

Coating

FC18

Decimal Equivalent

0.75″

Flute Count (NOF)

Series/List #

3400

Flute Helix Angle (FHA)

Variable

Product Features

Remarks

‎

Square, Ball and Corner Radius End

4 Flutes

Variable Helix

Variable Index

Variable Rake

Superior Core Strength

Single End

Right Hand Spiral

Right Hand Cut

Available in Various Flute and Overall Lengths

Standard FC-18 Coating

Metric and Inch Based Tools

Center Cutting

Dura Carb (Micrograin)

Shank Diameter Tolerance: h6

Cutter Diameter Tolerance: +.000″ -.002″ / +0.000–0.05mm

Some Items are made to order and not planned as a normal stocked item, when checking stock this will be indicated

Country of Origin

USA

Shipping Info

Package Weight

0.34
