DTE500-040 T9225
Grooving Insert; 0.197″ CW × 0.925″ Max Depth ; Carbide ; T9225 ; Ti-compound+Al2O3+TiN
| Cutting Width (CW) | 0.197″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Corner Radius (RE) | 0.0157″ | Cutting Direction (HAND) | Neutral |
| Cutting Depth Maximum (CDX) | 0.925″ | Number of Cutting Edges | 2 |
| Coating | Ti-compound+Al2O3+TiN | Measurement Type | Inch |
| Grade | T9225 | Tool Type | Groove-Turn Utility Inserts |
| Cutting Edge Material | Carbide | Body Material | Carbide |
| Application | | Inserts | |
Product Features

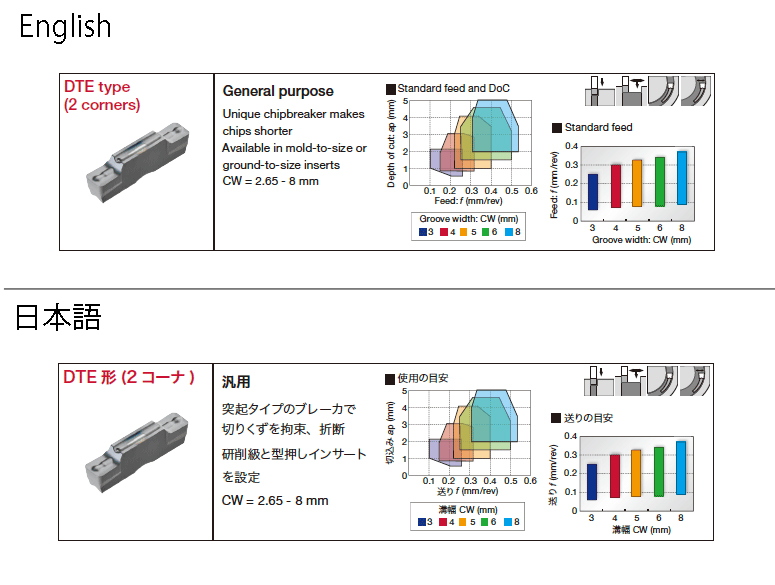

| Family Description | Precision double-ended inserts for external/face grooving & turning, tolerance of insert width +-0.0008 inch (only DTE3-,4-,5-,6-*** +-0.002 inch) | Country of Origin | Japan |
| Remarks | For "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.08
