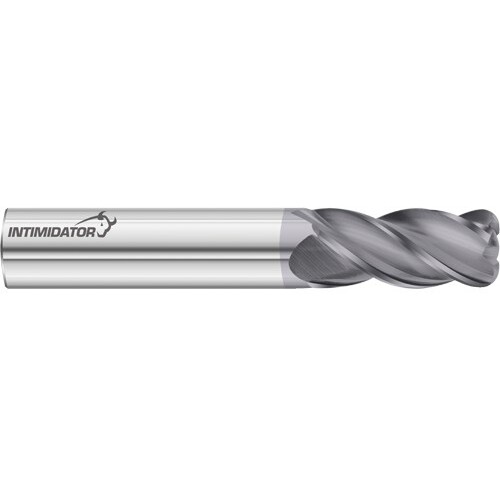

Corner Radius End Mill; 12 mm Dia. × 27 mm LOC × 12 mm Shank Dia. × 76 mm OAL ; 4 FL ; Carbide ; FC18 ; Series 3000
SQ End Mill; 12 mm Dia. × 27 mm LOC × 12 mm Shank Dia. × 76 mm OAL ; 4 FL ; Carbide ; Series 3000
| Cutting Diameter (DC) | 12 mm | End Shape | Corner Radius |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Usable Length (LU) | 27 mm |
| Depth of Cut Maximum (APMX) | 27 mm | Corner Radius (RE) | 3 mm |
| Overall Length (OAL) | 76 mm | Tool Type | Center Cut|Single-End |
| Cutting Edge Material | Carbide | Length Group | Regular |
| Coating | FC18 | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.4724″ |
| Flute Helix Angle (FHA) | 38 Degrees | Series/List # | 3000 |
| Shank Type | Weldon |
Product Features
| Remarks | |
Country of Origin | USA |
Shipping Info
Package Weight
.270
