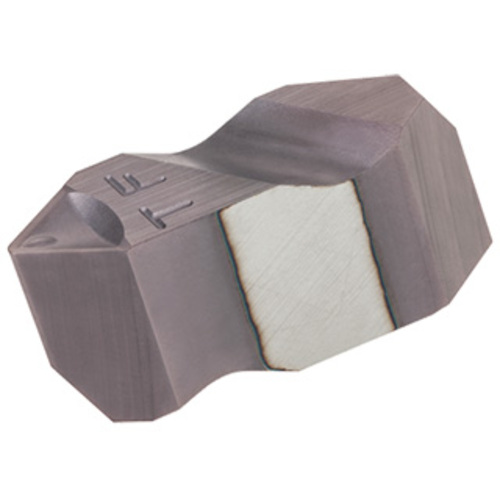

FLT-3R-HCB AH725
Grooving Insert; FLT-3R-HCB-C AH725 × 0.344″ Thickness × 3/8″ IC ; C ; TiAlN

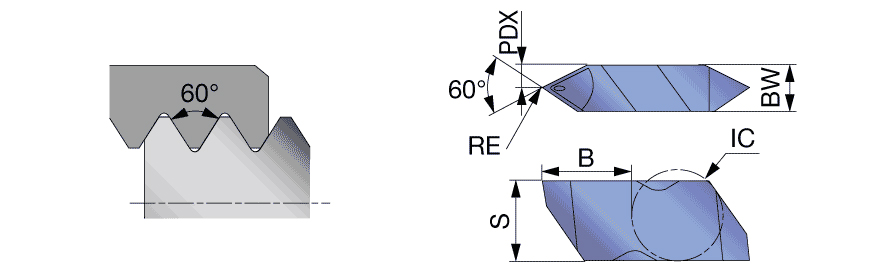

| Corner Radius (RE) | 0.007″ | Application | | Inserts | |
| Insert Thickness (S) | 0.344″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | Hard Materials | Aluminum / Non-Ferrous Materials | Super-Alloys / Titanium | |
| Inscribed Circle Diameter (IC) | 3/8″ | Cutting Direction (HAND) | Right Hand |
| Coating | TiAlN | Thread Pitch Minimum (TPN) | 1.27 mm |
| Grade | AH725 | Measurement Type | Inch |
| Cutting Edge Material | Carbide | Body Material | Carbide |
Product Features
| Family Description | Double-ended inserts for external & internal 60 deg V-threading with chipbreaker | Country of Origin | USA |
Shipping Info
Package Weight
0.1
