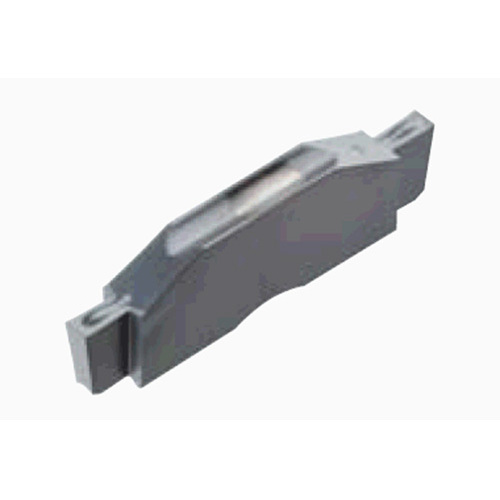

DGE100-000 NS9530
Precision double-ended inserts for external shallow grooving, tolerance of insert width +-0.0008 inch

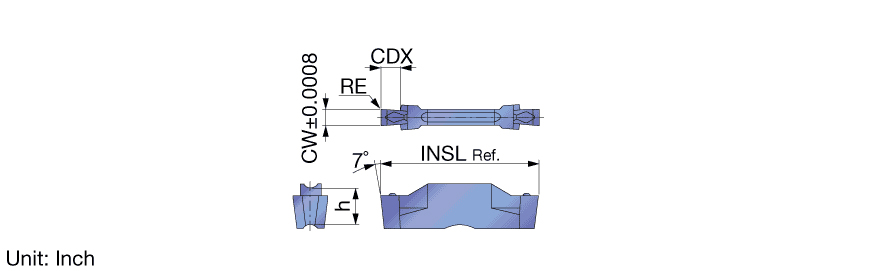

| Cutting Width (CW) | 0.039″ | Application | | Inserts | |
| Corner Radius (RE) | 0″ | Applicable Material | | Steel | Stainless Steel | Cast Iron | |
| Insert Length (INSL) | 0.787″ | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Cermet | Work Piece Parting Diameter Maximum (CUTDIA) | 0.157″ |
| Coating | Uncoated | Measurement Type | Inch |
| Grade | NS9530 | Body Material | Carbide |
Product Features
| Family Description | Precision double-ended inserts for external shallow grooving, tolerance of insert width +-0.0008 inch | Country of Origin | JAPAN |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
0.053
Related Documentation

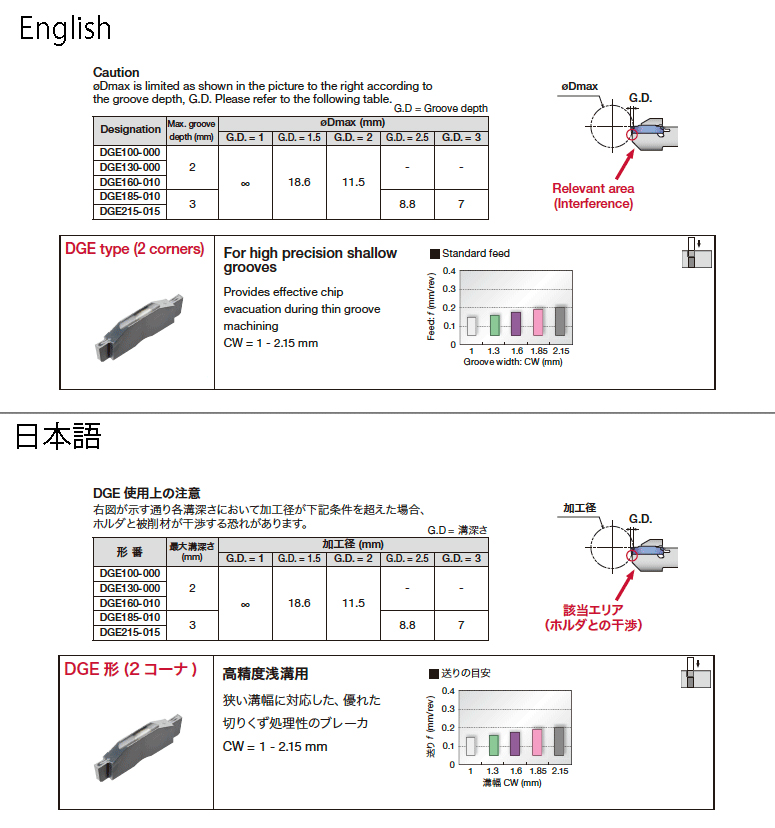

Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax. Note that Dmax is limited according to the groove depth (T).
