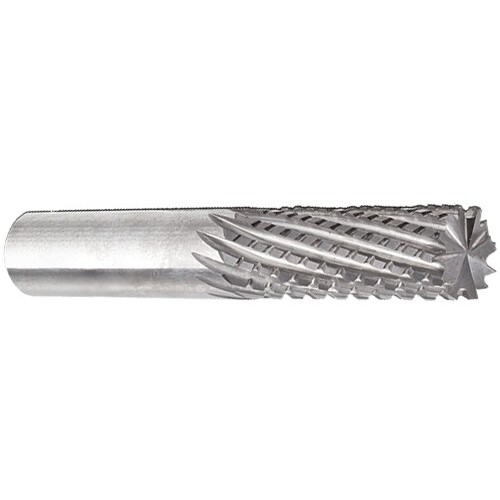

49J-5010R8RL300 IN05S
SQ End Mill; 1/2″ Dia. × 1″ LOC × 1/2″ Shank Dia. × 3″ OAL ; 12 FL
| Cutting Diameter (DC) | 1/2″ | Applicable Material | | Cast Iron | Non Ferrous Metals | |
| Connection Diameter Machine Side (DCONMS) | 1/2″ | Application | Shouldering | Slotting |
| Depth of Cut Maximum (APMX) | 1″ | Grade | IN05S |
| Overall Length (OAL) | 3″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Body Material | Steel |
| Coating | AlTiN | Decimal Equivalent | 0.5″ |
| Flute Count (NOF) | 12 | Measurement Type | Inch |
| Flute Helix Angle (FHA) | 15 Degrees | Corner Radius (RE) / Chamfer Width (CHW) | Sharp |
| End Shape | Square |
Product Features
| Country of Origin | S.Korea |
Shipping Info
Package Weight
0.3
