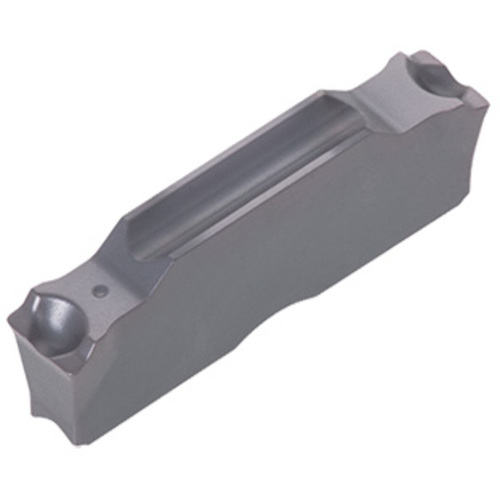

DGL4-030 AH6235

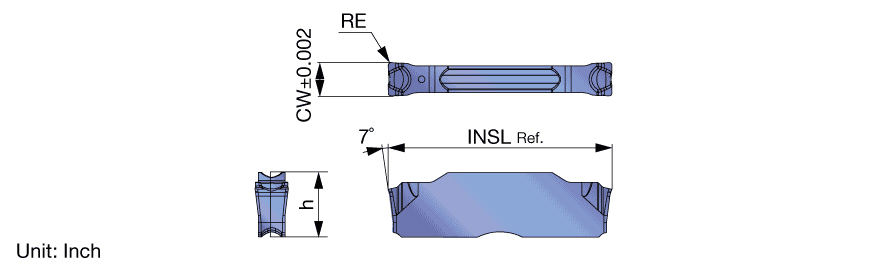

Parting Off Insert; 0.157″ CW × 0.787″ Length × 0.012″ Corner Radius ; Carbide ; TiAlN ; AH6235
| Cutting Width (CW) | 0.157″ | Application | | Inserts | |
| Corner Radius (RE) | 0.012″ | Applicable Material | | Steel | Stainless Steel | |
| Insert Length (INSL) | 0.787″ | Tool Type | Face Turn-Groove Inserts |
| Cutting Edge Material | Carbide | Work Piece Parting Diameter Maximum (CUTDIA) | 1.417″ |
| Coating | TiAlN | Measurement Type | Inch |
| Grade | AH6235 | Body Material | Carbide |
Product Features

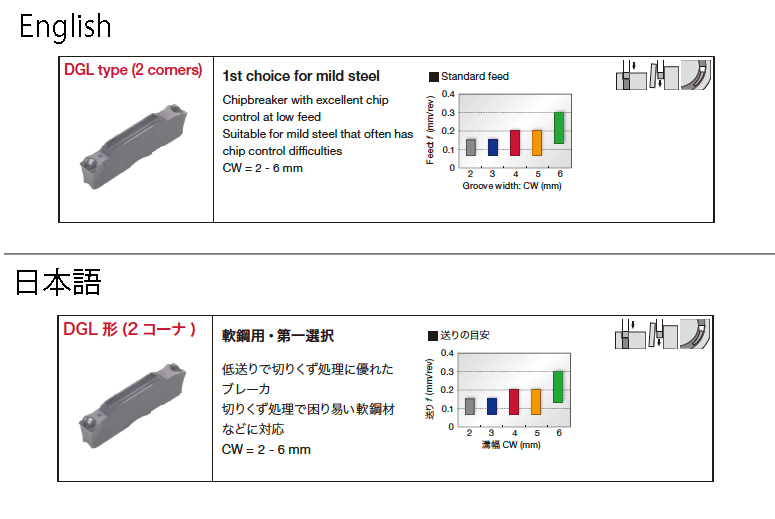

| Family Description | Double-ended inserts for external / face grooving & parting, 1st choice for low carbon steel, tolerance of insert width +/-0.002 inch | Country of Origin | JAPAN |
| Remarks | For "Standard cutting conditions", click on "More Info". |
