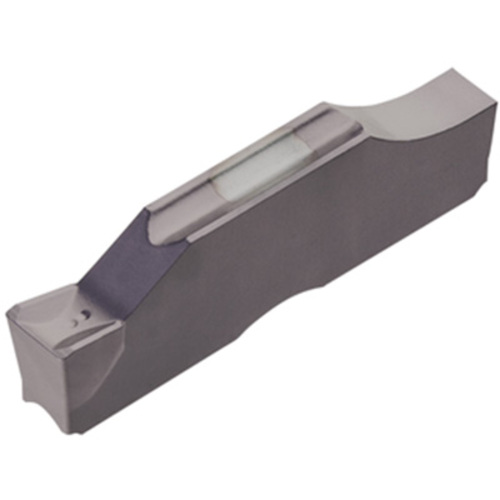

SGM6-030 AH8005
Parting Off Insert; 0.236″ CW × 0.984″ Length × 0.0118″ Corner Radius ; Carbide ; AlTiN ; AH8005

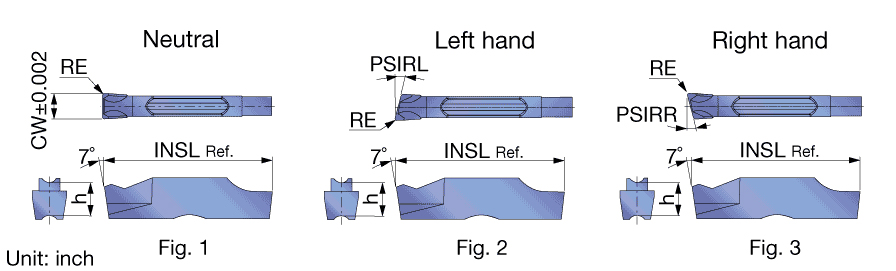

| Cutting Width (CW) | 0.236″ | Application | | Inserts | |
| Corner Radius (RE) | 0.0118″ | Applicable Material | | Stainless Steel | Hard Materials | Super-Alloys / Titanium | |
| Insert Length (INSL) | 0.984″ | Cutting Edge Angle Major Left Hand (PSIRL) | 0 Degrees |
| Cutting Edge Material | Carbide | Tool Type | Face Turn-Groove Inserts |
| Coating | AlTiN | Measurement Type | Inch |
| Grade | AH8005 | Body Material | Carbide |
Product Features
| Family Description | Single-ended inserts, 1st choice for external grooving & parting, tolerance of insert width +/-0.002 inch | Country of Origin | Japan |
| Remarks | For "Max workpiece diameter" and "Standard cutting conditions", click on "More Info". |
Shipping Info
Package Weight
12.7
Related Documentation

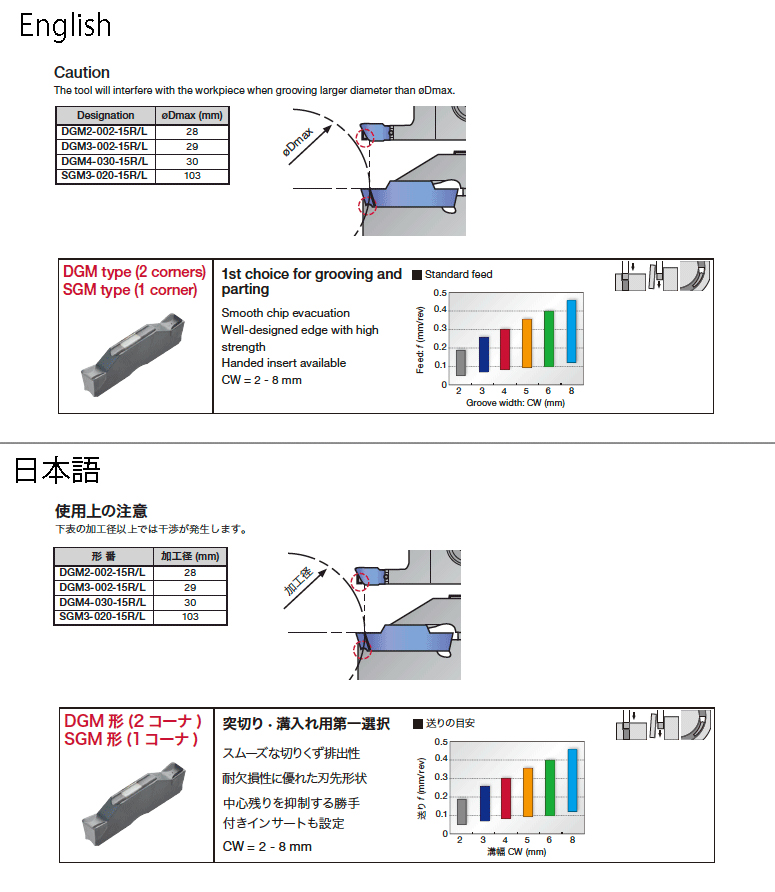

Caution: The tool will interfere with the workpiece when grooving larger diameter than Dmax.
